Home/Products/Smart Home Camera

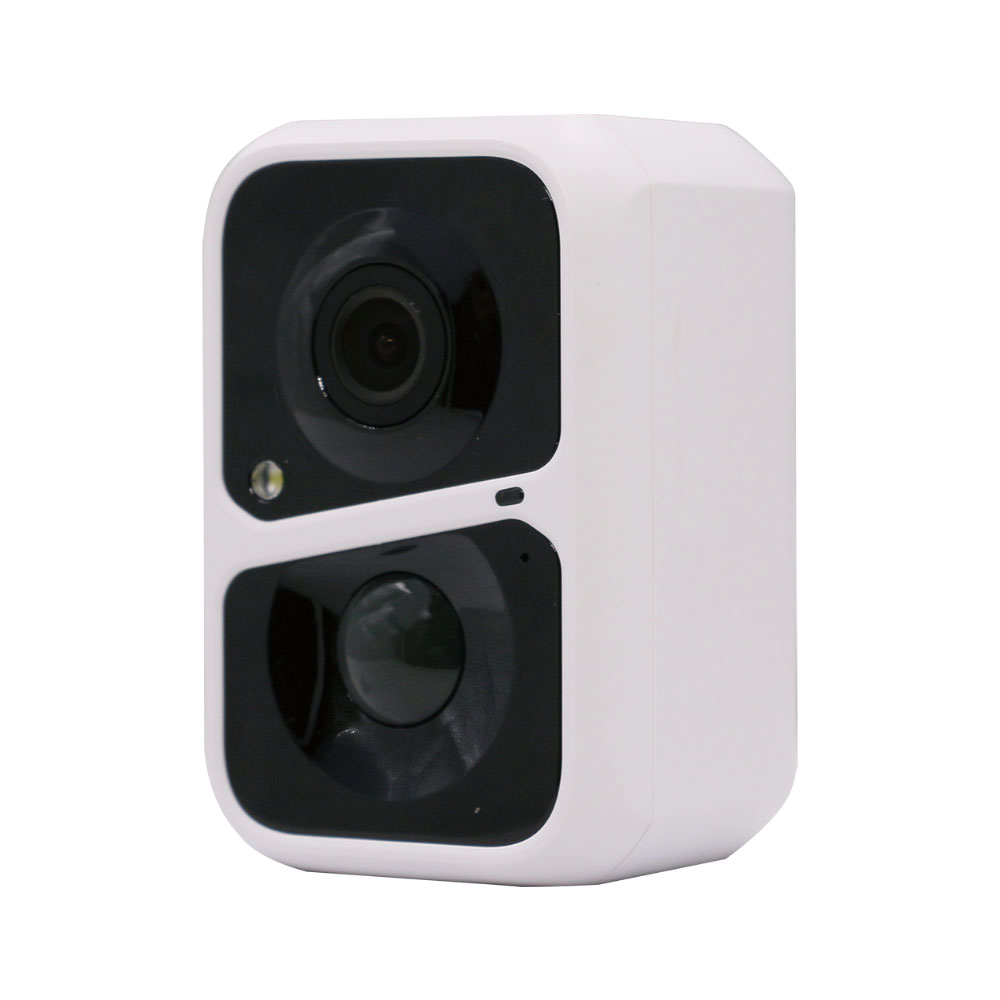

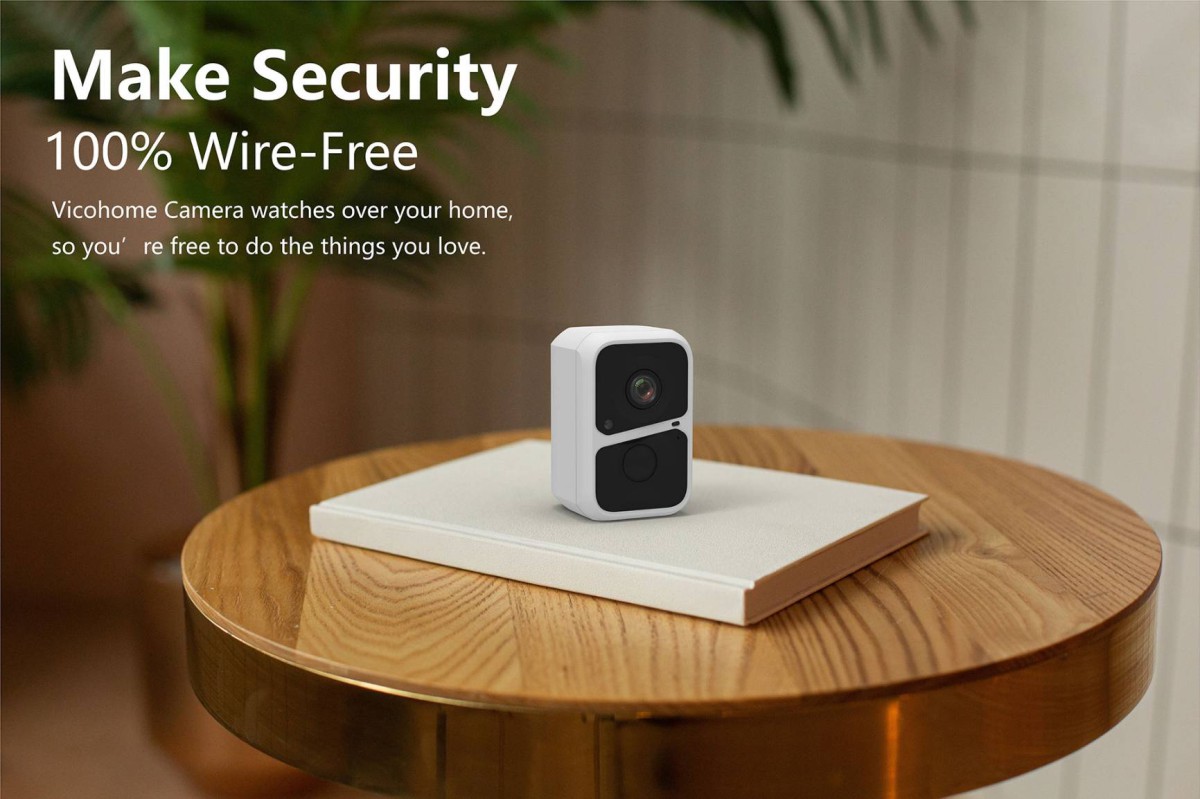

Quickly deter unwanted guests - V5

Easy to install and use

  • • Easy to install and use
  • • Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network
  • • Online firmware upgrade, and synchronous updating of the functions and experience
  • • Two-way voice intercom supported; echo eliminated; noise suppressed
  • • Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal
  • • 2-megapixel high resolution (1920X1080) for clear picture quality
  • • Lighting for infrared night vision (with a night vision distance of 7m); 24h around-the-clock monitoring; IR-CUT switching; free of color cast in the daytime; clearer night vision
  • • The built-in rechargeable lithium battery with long battery life functions for up to 6 months under normal circumstances and can stand by for 12 months
  • • 2.4G Wi-Fi supported (IEEE802.11b/g/n)
  • • Cloud storage, Micro SD card (up to 128GB) and mobile phone video recording supported
PDF Download Video Showing

Close
DescribeSpecificationsPackageLine Diagram
Model: V5 Specifications
Master Processor SOC T31ZL
Image Sensor Sensor 1/2.9" color CMOS Sensor
Lens M12, f: 3.3mm, F2.0, 2-megapixel
Visual angle H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
Minimum Illumination 0.01 Lux
Audio Input/Output Two-way voice intercom available (built-in Microphone and speaker)
Audio Compressing Method AAC
Video Video Compressing Method H.264/H.265
Lighting Frequency 50Hz, 60Hz
Image Frame Rate 15 fps
Maximum Image Resolution 1920*1080P
Light Source for Night Vision IRCUT double optical filter automatic switching, and 8 infrared lights (850nm wavelength)Irradiation distance: 7M
Network Wireless Network 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols Supported TCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address Supported Dynamic IP address supported
AI Intelligent Features Human contour detection, activity zone,intelligent push,  pet snapshot,Package inspection
Alarm Notification Alarm Methods Alarm push by mobile APP and alarm sound
Wake-up Wake-up Method PIR body induction wake-up, and remote positive wake-up
Video Recording Recording Method Alarm triggered recording, and manual recording
Video Storage Cloud storage, local Micro SD card, and mobile phone memory
Indicator Lamps LED Indicator RGB tri-color lamp indicating the status of power/network signal/functionality
Battery Capacity 5200mAh/6700mAh（Optional ）
Removability Unremovable
Battery Life 6 months (provided that 20 10s videos are recorded per day)
Standby Time 1 year
Charging Voltage DV 5V+-5%/1.5A
Charge Time Within 10 hours
Protection Method IP65 is dustproof and waterproof; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures
Power Consumption Standby Power Consumption 1.68mW（4V 0.42mA）
Power Consumption of Daytime Operation 0.88W（4V 220mA）
Power Consumption of Operation at Night 2.20W（4V 550mA）
Interfaces Power Supply 1 Micro USB interface
SD Card 1 Micro SD card (up to 128GB supported)
Keys 1 reboot key and 1 on/off key

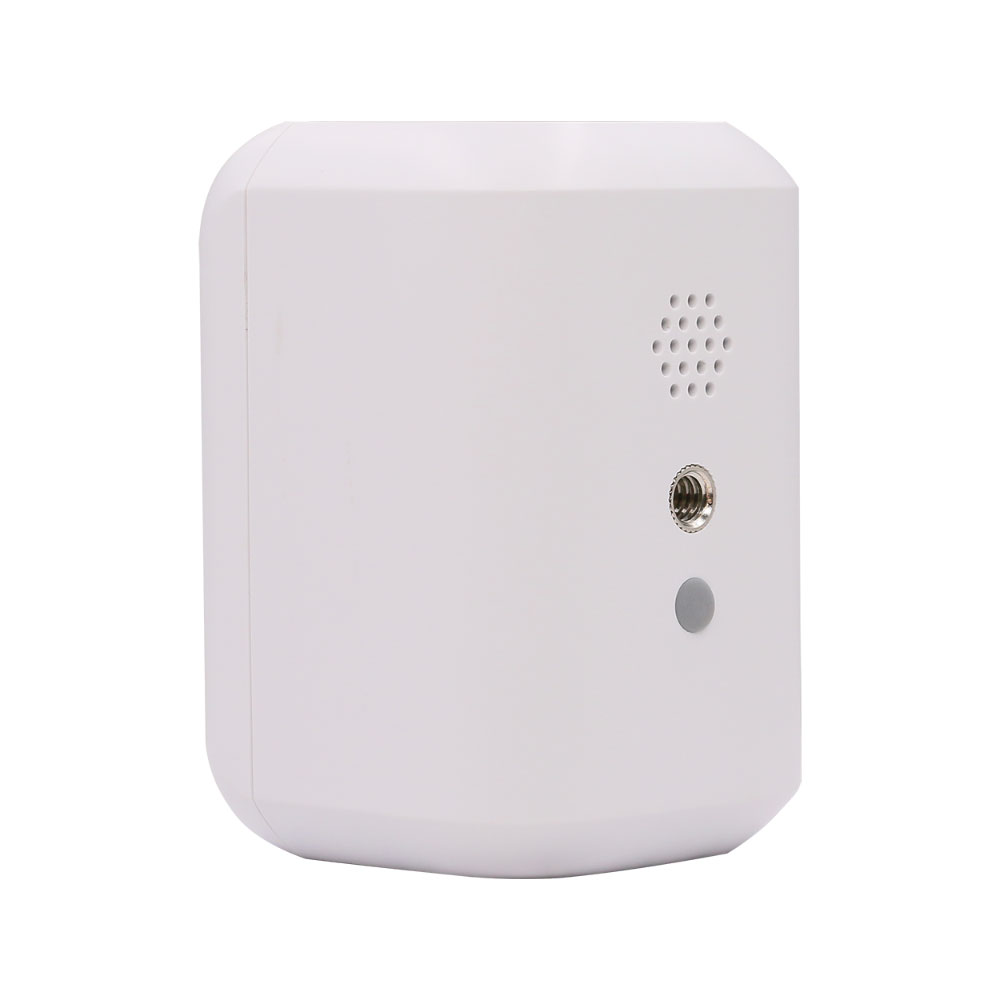

Installation Method Installation Method Bottom 1/4 universal screw hole
Environment Dustproof and waterproof IP65
Operating Environment -10° ~ 45°C  /10% ~ 80%  (no condensation)
Storage Environment -20°C ~ 60°  /0% ~ 90% (no condensation)

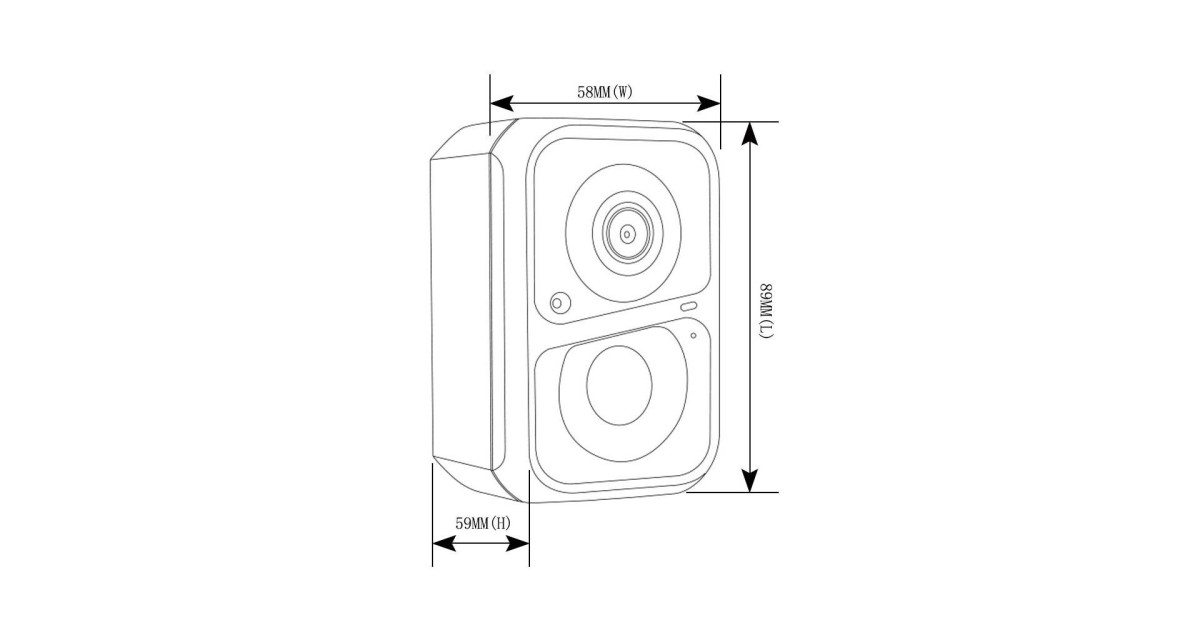

Specifications Size (LxWxH) 89mm*58mm*59mm(without bracket)
Material + Process ABS+PC
Color White
Certifications Certificate CE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368, BattG
