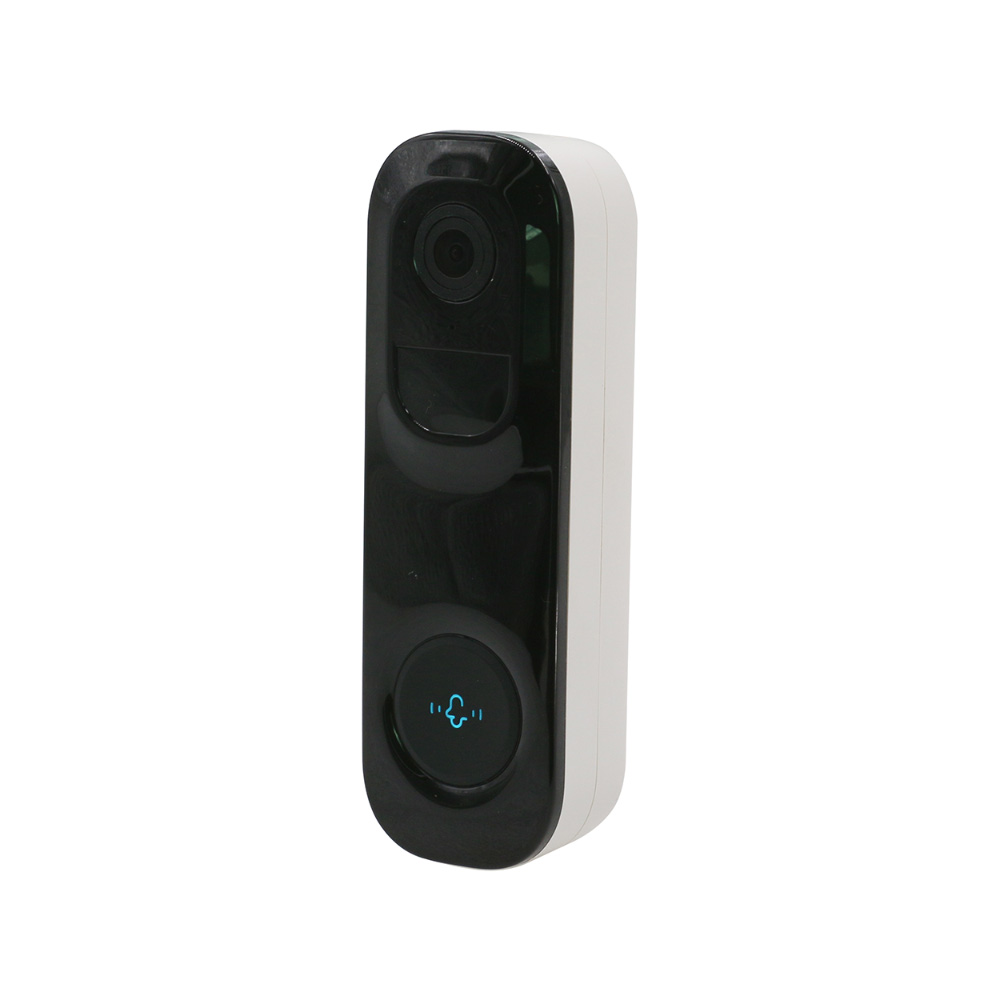

Smart battery video doorbell - DB1

Keeps an eye on your front door,24/7

  • Wireless Battery Powered low-consumption Video Doorbell(Outdoor IP65)
  • LED: 2 pcs High Power IR Leds IR Range: 10M
  • Lens: 2.8mm Wide angle lens
  • Low power consumption, Alexa (Optional) up to 8 months' endurence
  • Motion detection by PIR Sensor, Support SD Card up to 128GB
  • Push video to smart phone, two way audio

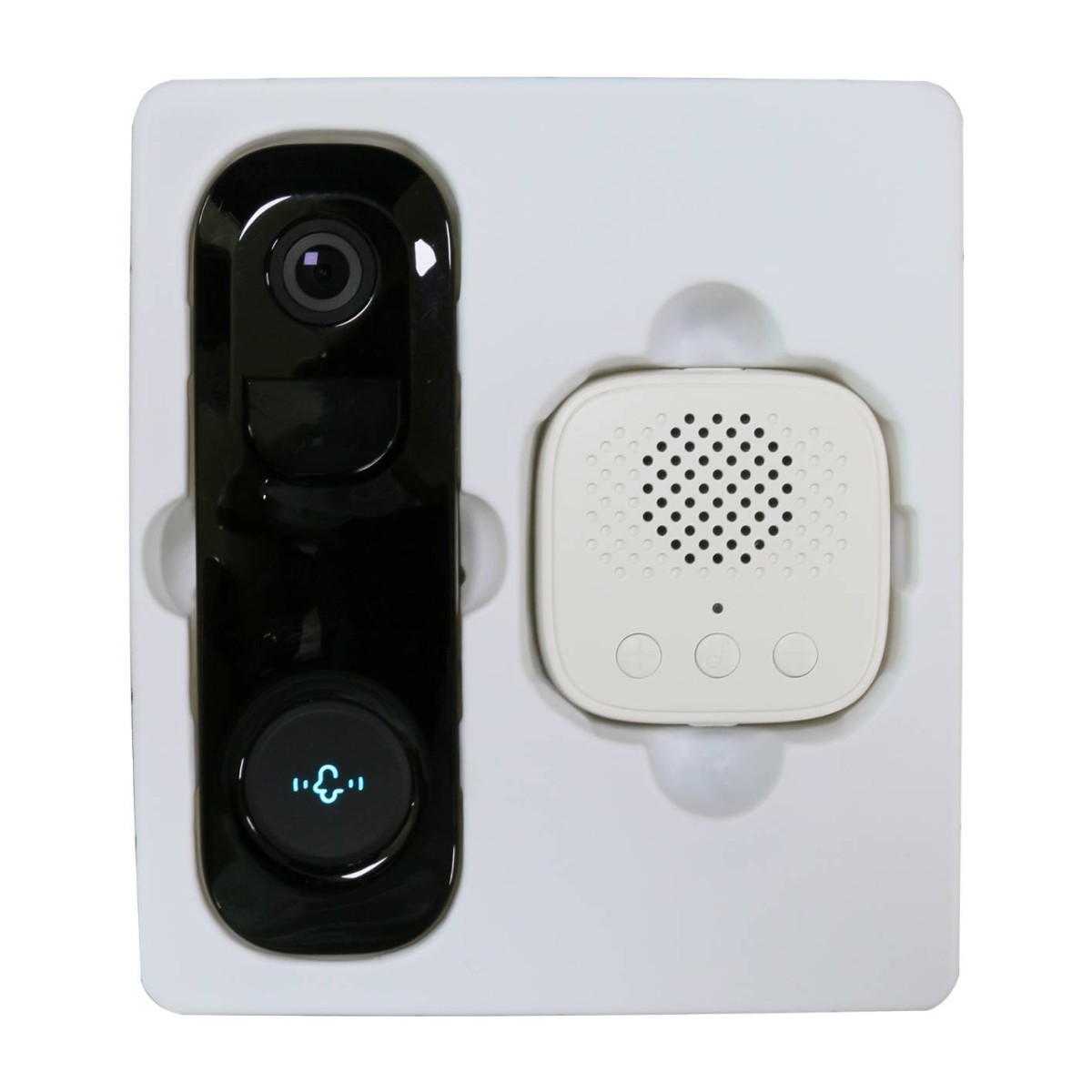

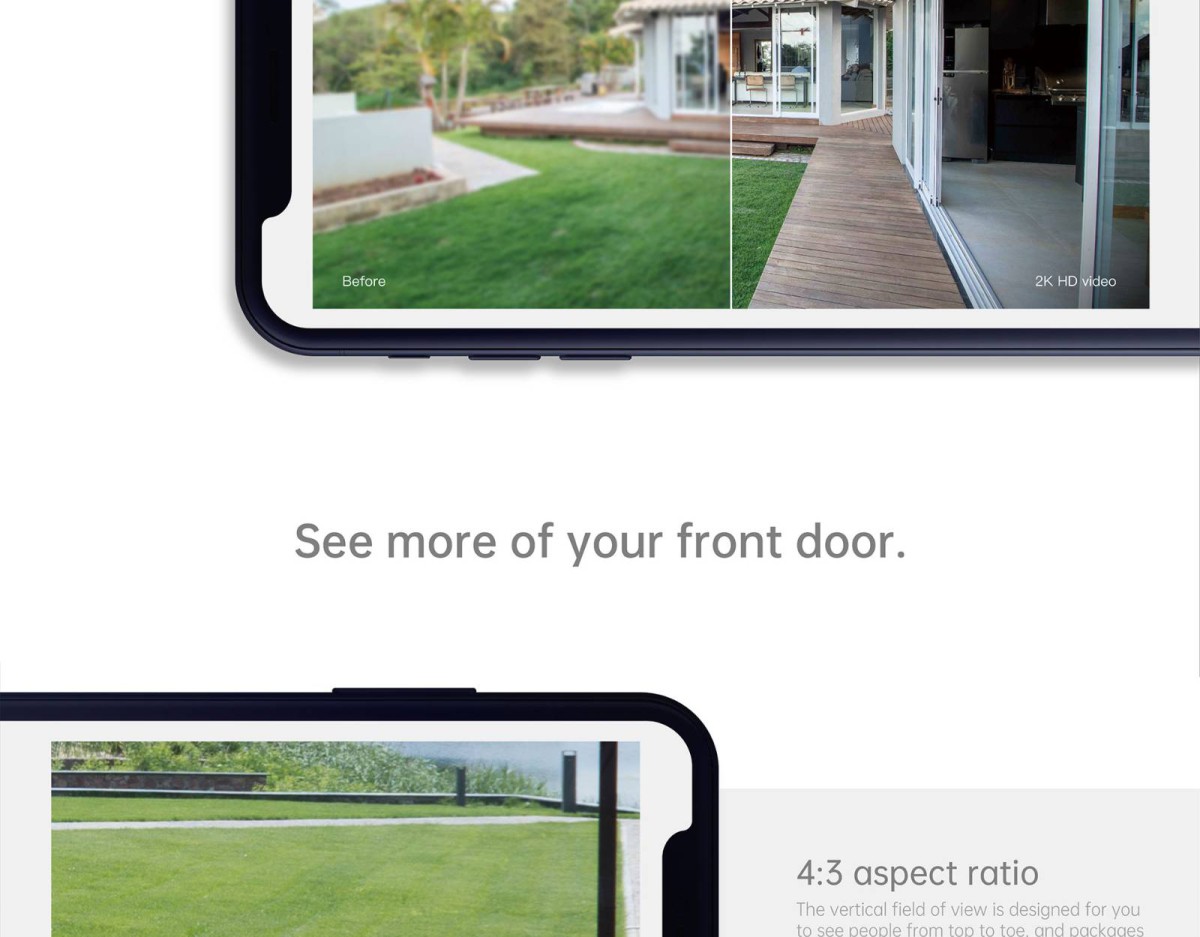

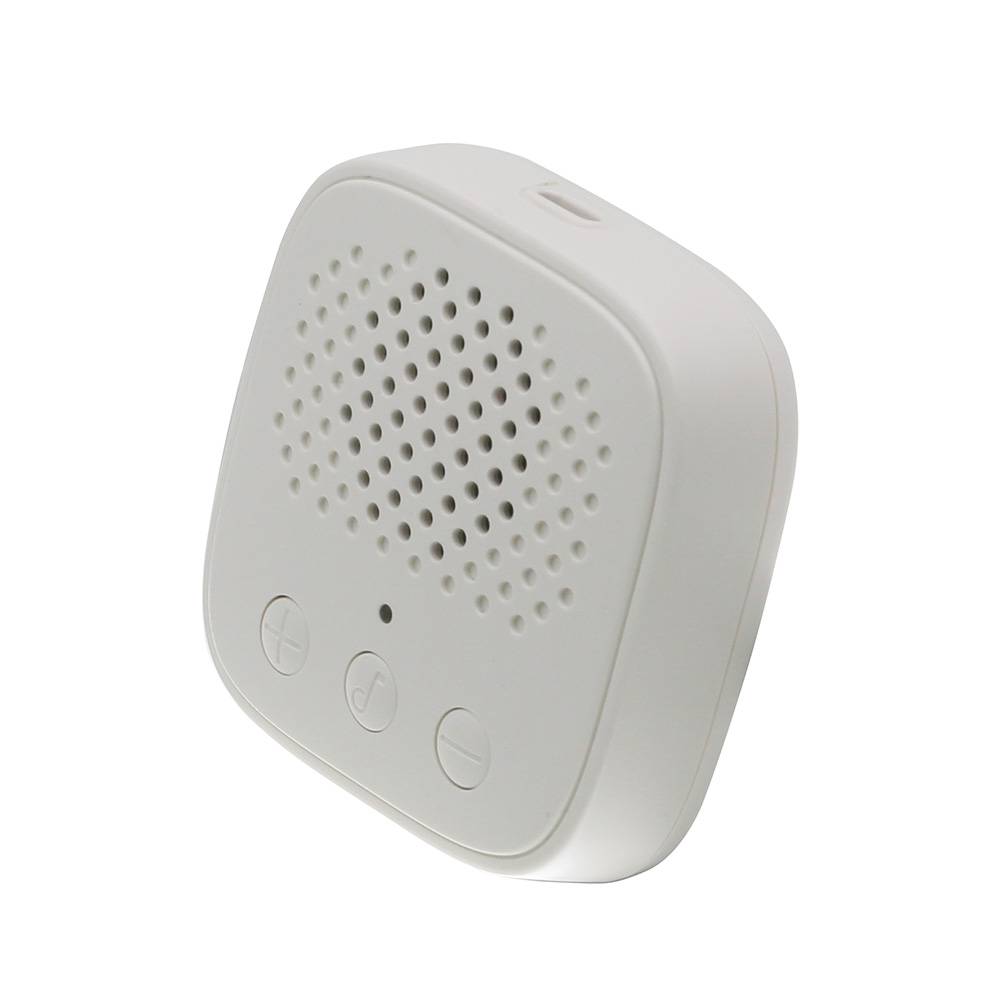

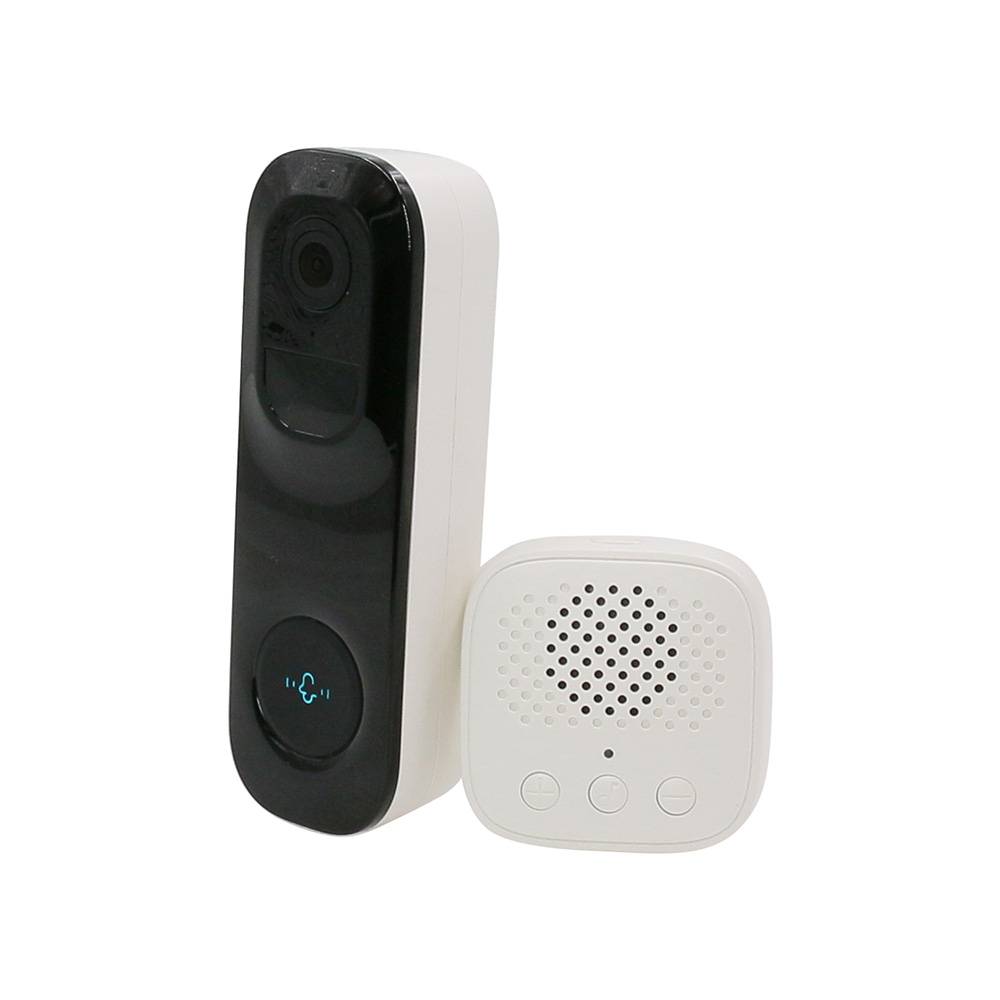

  • 4:3 Aspect Ratio, Tamper Alarm, Chime included
  • Power: 2×18650 battery(totally 5200 mAh) or hardwire (5V USB cable), easy charge by usb cable
  • Size: 31(L)mm x 46(W)mm x 144mm(H)
  • Weight: 420g
PDF Download Video Showing

Close

Model:DB1
Camera Sensor 1/2.8" CMOS
Focal Length 2.8 mm
Optical Field of View 156° diagonal, 114° horizontal, 82° vertical
Minimum Illumination 0.01 lux
Audio Input Built-in microphone
Output Built-in speaker
Two-way Audio Full duplex
Audio Compressing AAC
Video Video Compressing H.264, H.265
Lighting Frequency 50 Hz, 60 Hz
Frame Rate 15 fps
Maximum Resolution 2048 × 1536
Light Source For Night Vision Infrared LED
Network Wireless Standard Wi-Fi: 2.4 GHz (IEEE 802.11 b/g/n)
FSK: 915 MHz, 868 MHz, 433 MHz
Protocols Supported TCP/IP, UDP/IP, DHCP, RTMP, MUTP, FSK
IP Address Type Dynamic IP address
Recording Recording Method Alarm triggered recording, and manual recording

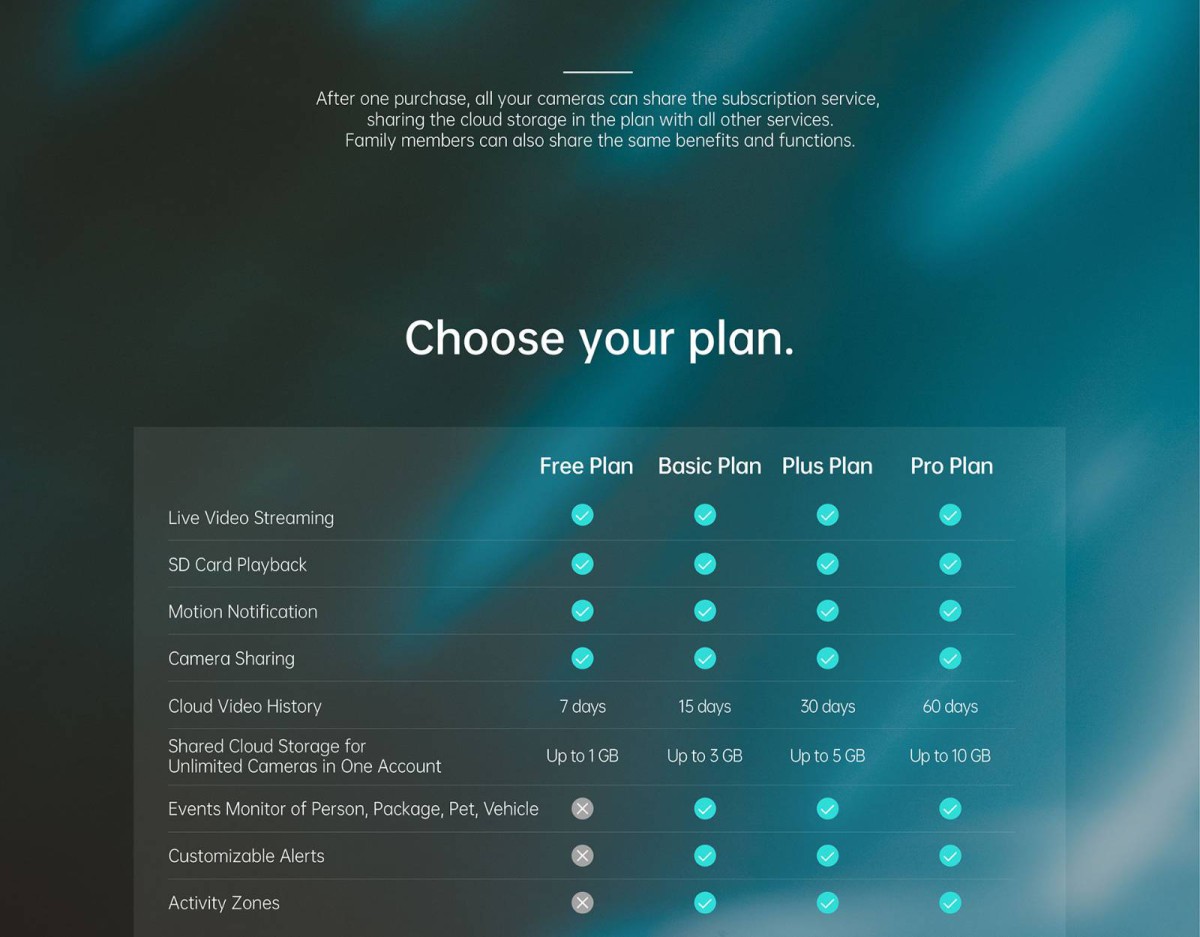

Video Storage Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory

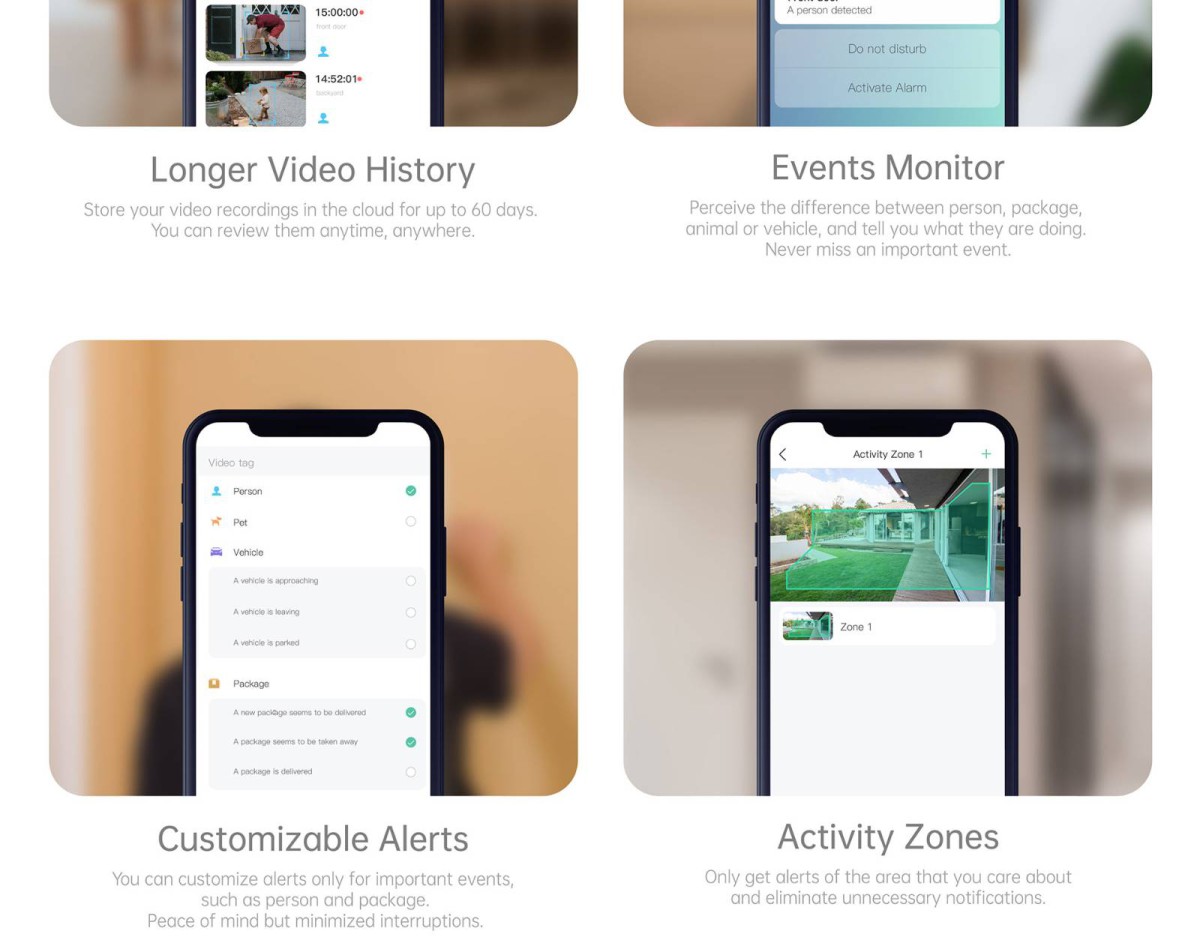

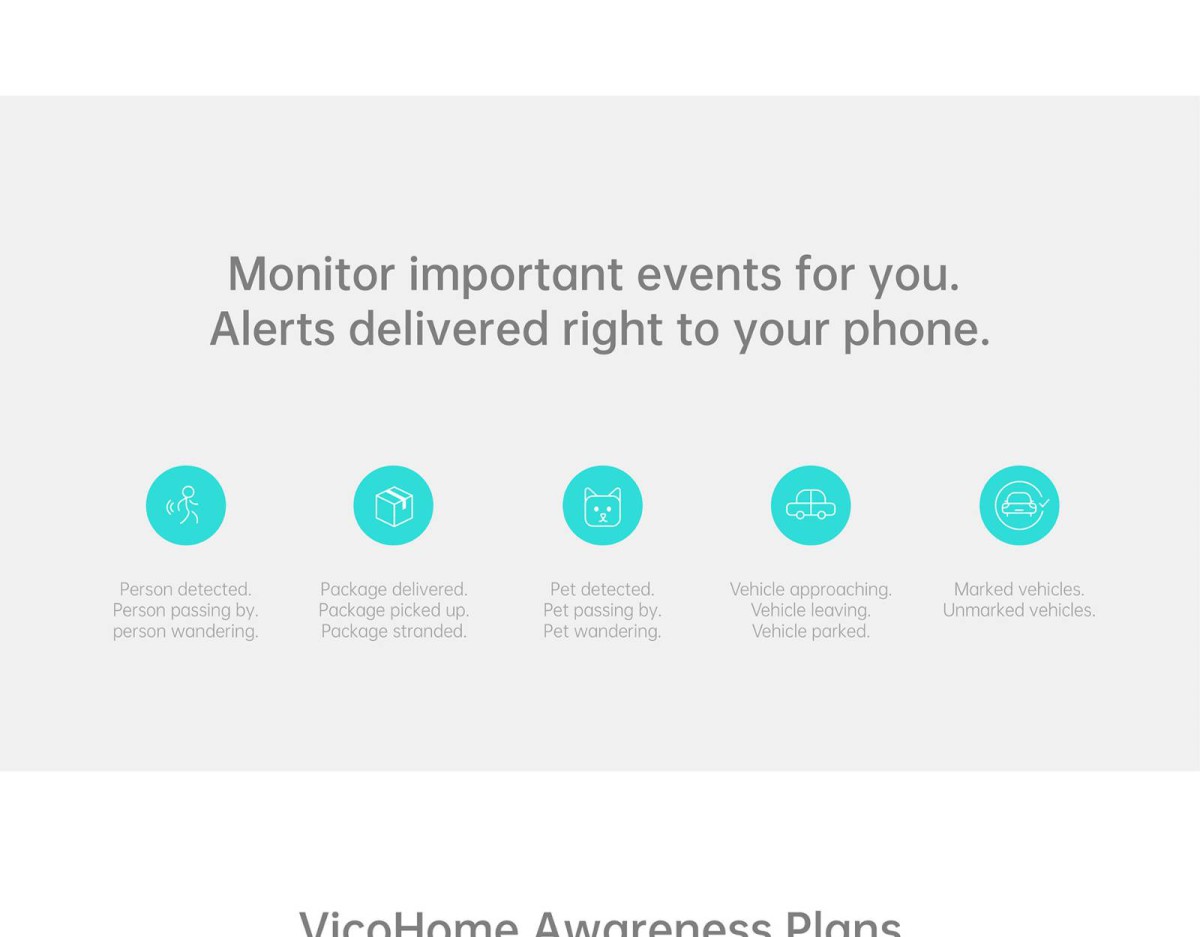

Function AI Function Human detection, vehicle detection, pet detection, package detection, activitiy zone
Wake-up Method PIR body induction wake-up, remote wake-up and button to wake up
Alarm Notification Alarm push by mobile app, indicator light flashing and alarm sound warning
Indicator RGBY four-color LED

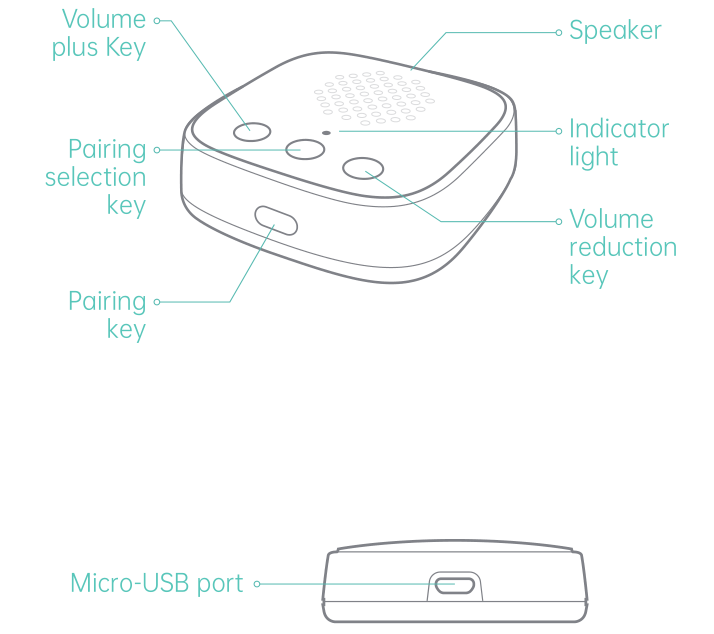

Compatibility of Mechanical chime and Smart speaker Mechanical Chime, Alexa and Google Home supported
Battery Capacity 5200 mAh or 6700 mAh optional
Removability Unremovable
Working Time 5 months (recording 20 pieces of 10-second video per day)
Standby Time 1 year
Charging Voltage DC: 5 V ±5%
AC: 8 V ~ 24 V
Charging Time Within 10 hours (DC)
Protection Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature
Power Consumption Standby 3 mW
Daytime Working 1 W
Nighttime Working 2.5 W
Interface Power Micro USB
Storage Micro SD card
Key Power key, doorbell key and reset key

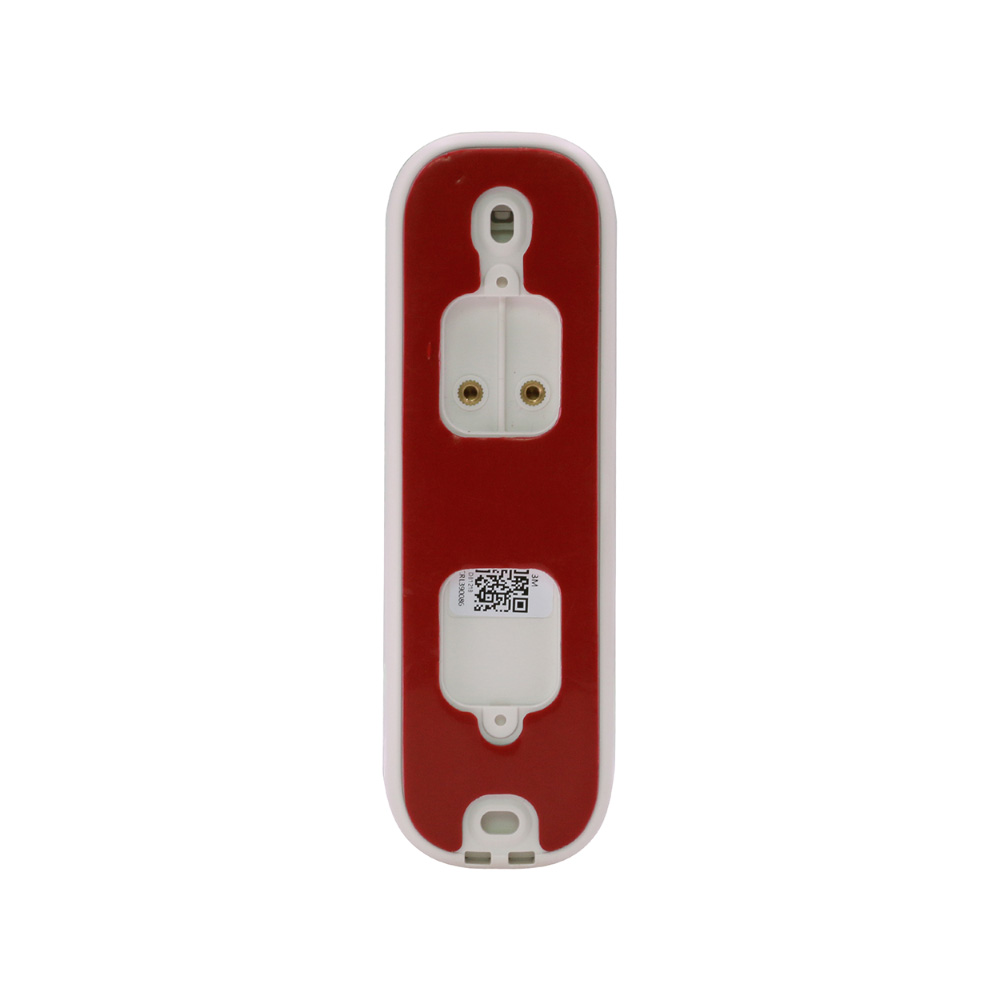

Installation Installation Method Bracket installation
Bracket Type Standard for flat brackets, optional for left and right tilt brackets and up and down tilt brackets
Tamper-proof Structural tamper proof Tools required for removal
Electronic tamper proof Alarm sound and push mobile phone message when illegally remove (optional)
Environment Dustproof and Waterproof IP65
Operating Temperature -10 ℃ ~ 45 ℃
Storage Temperature -20 ℃ ~ 60 ℃
Prodoct Dimension Dimension 144 mm × 46 mm × 31 mm (without bracket)
Material PC
Color Whtie
Certification Certification CE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368
