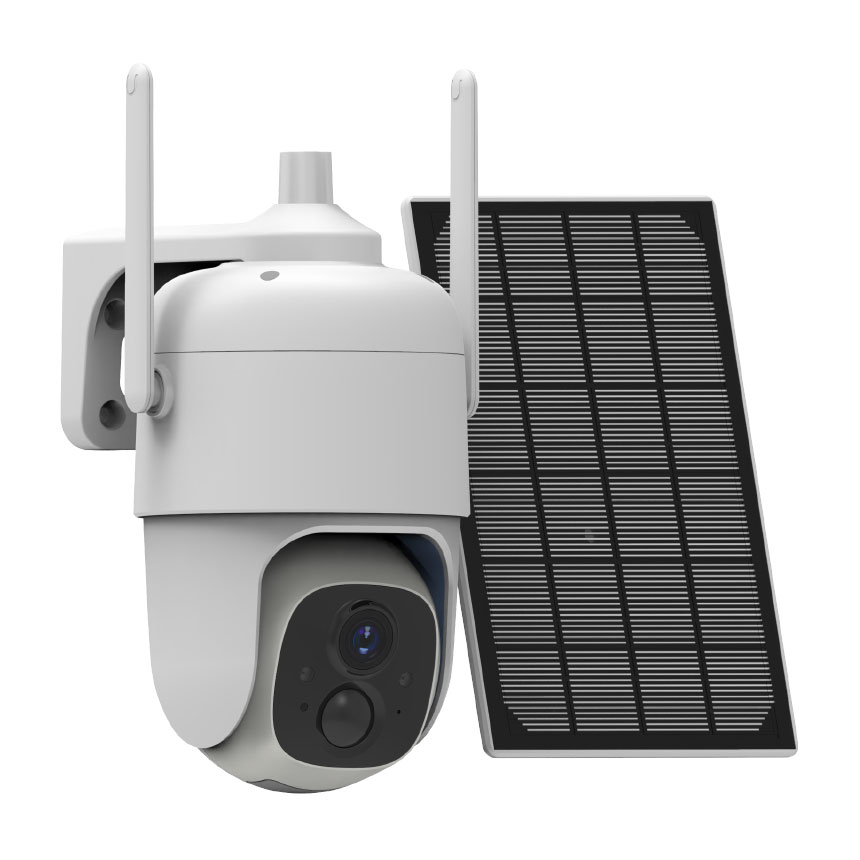

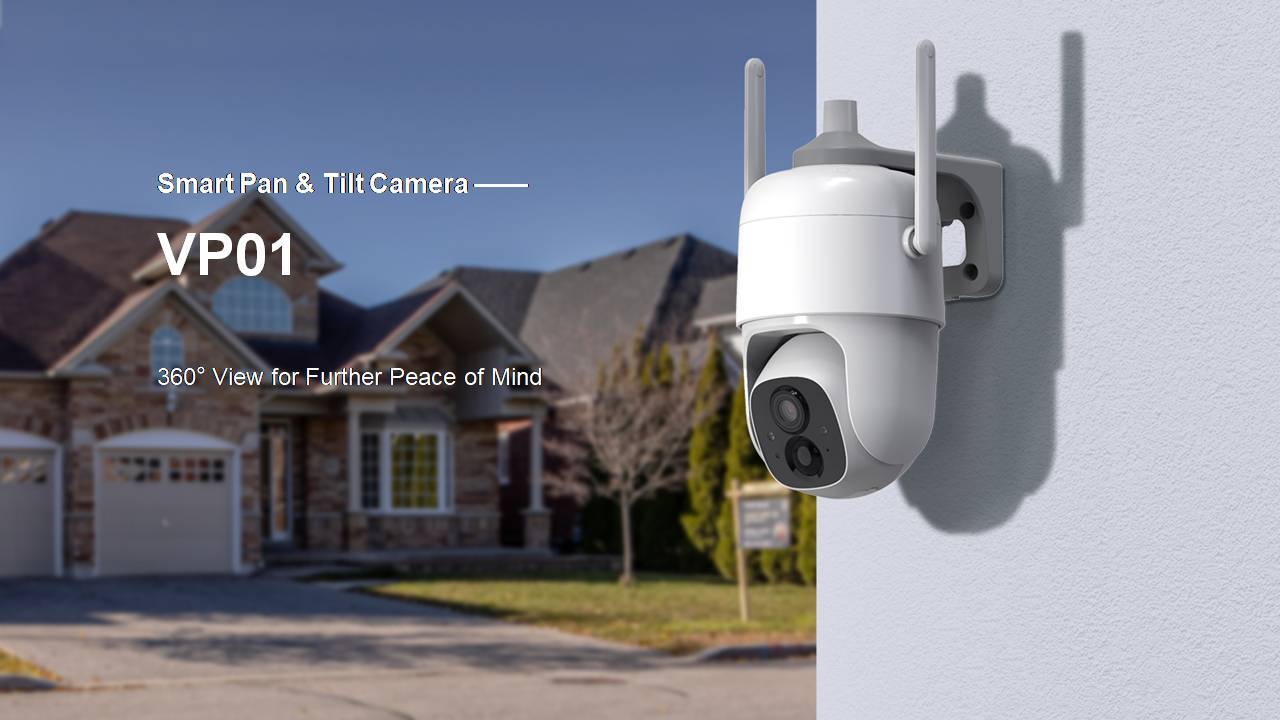

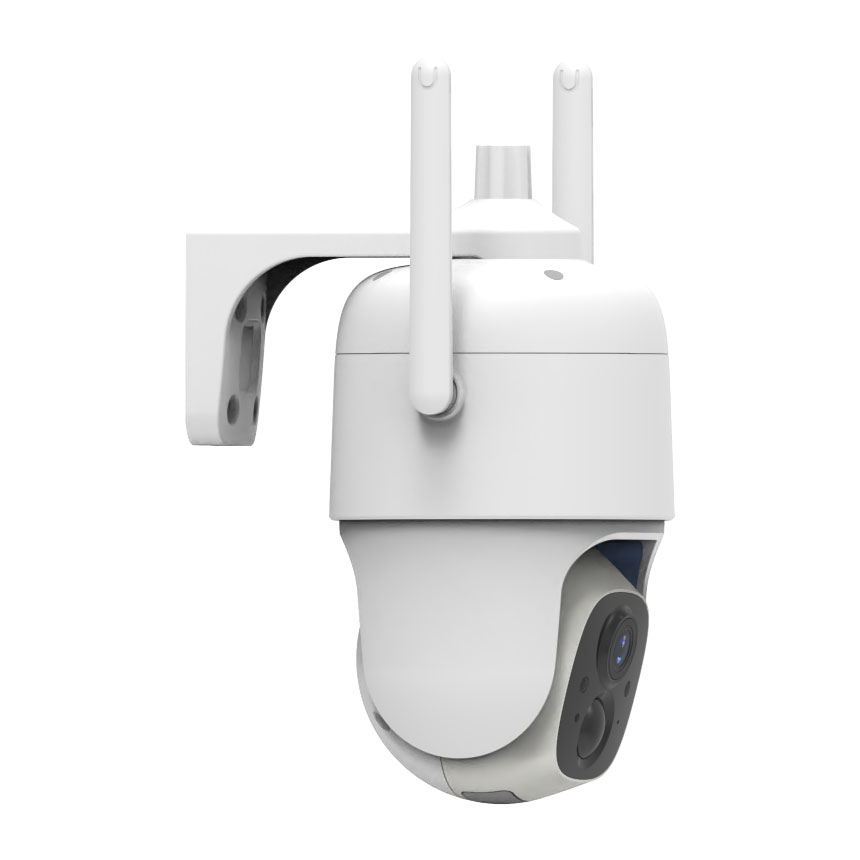

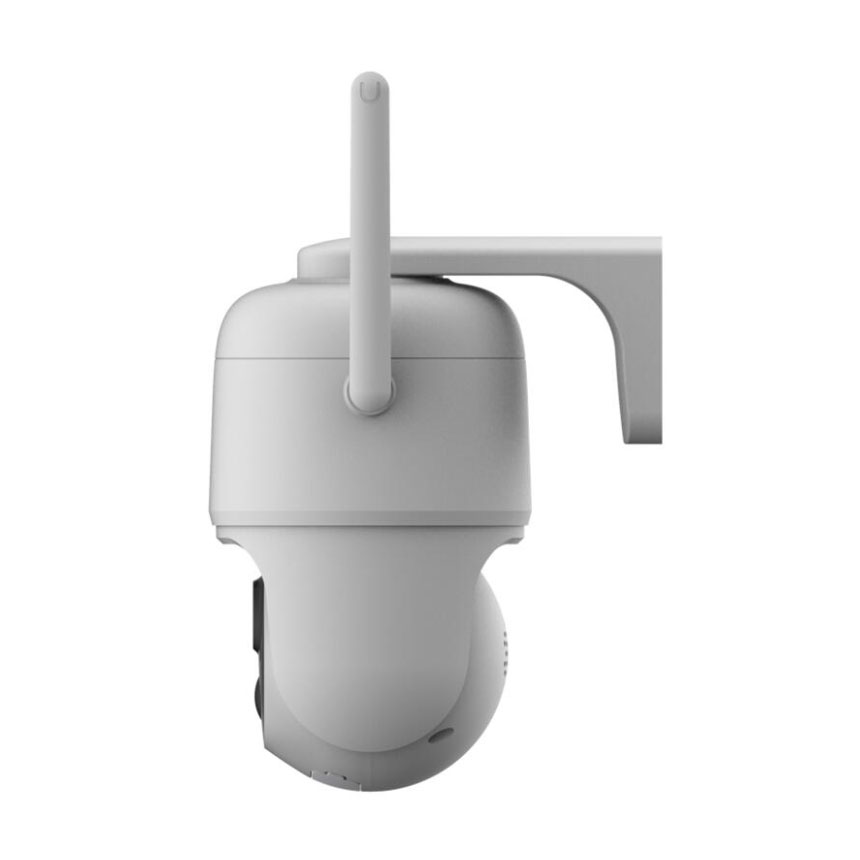

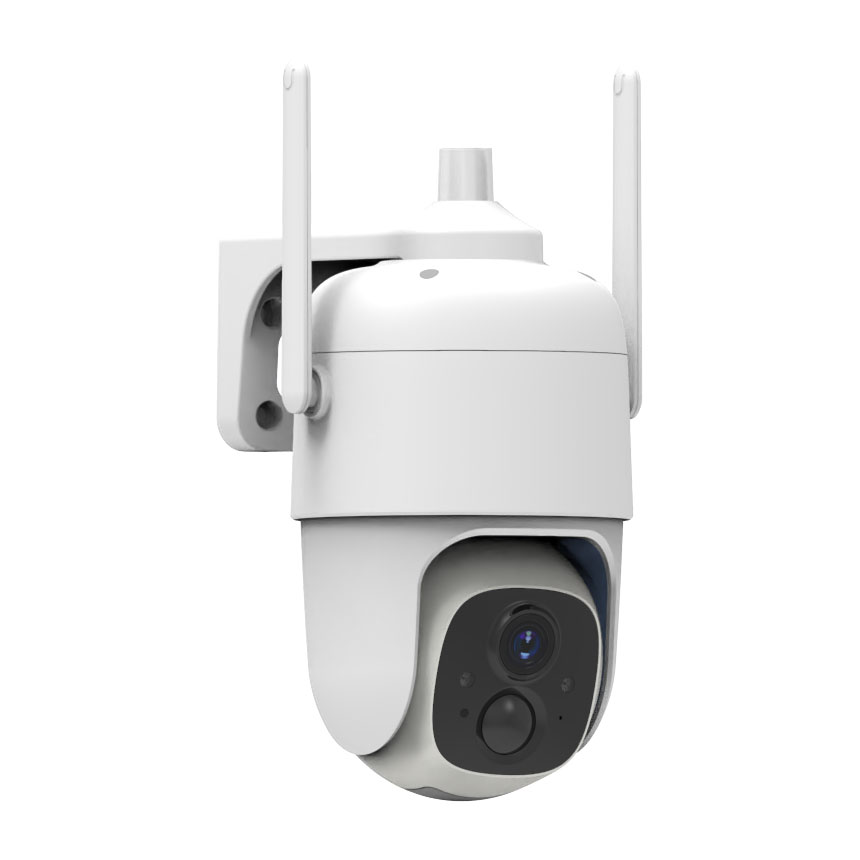

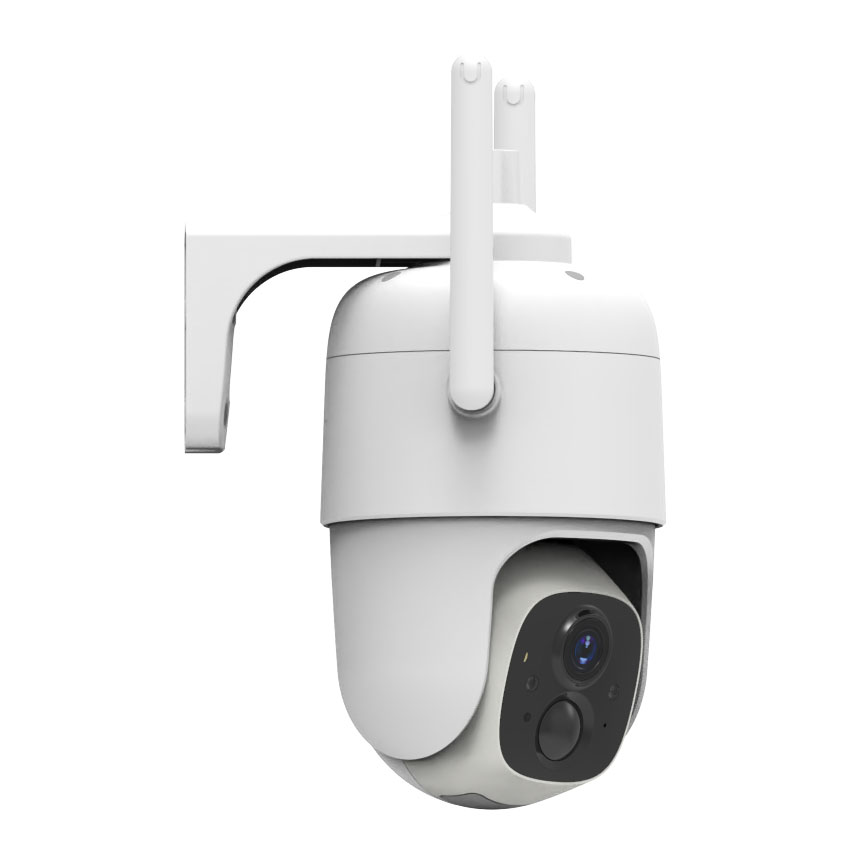

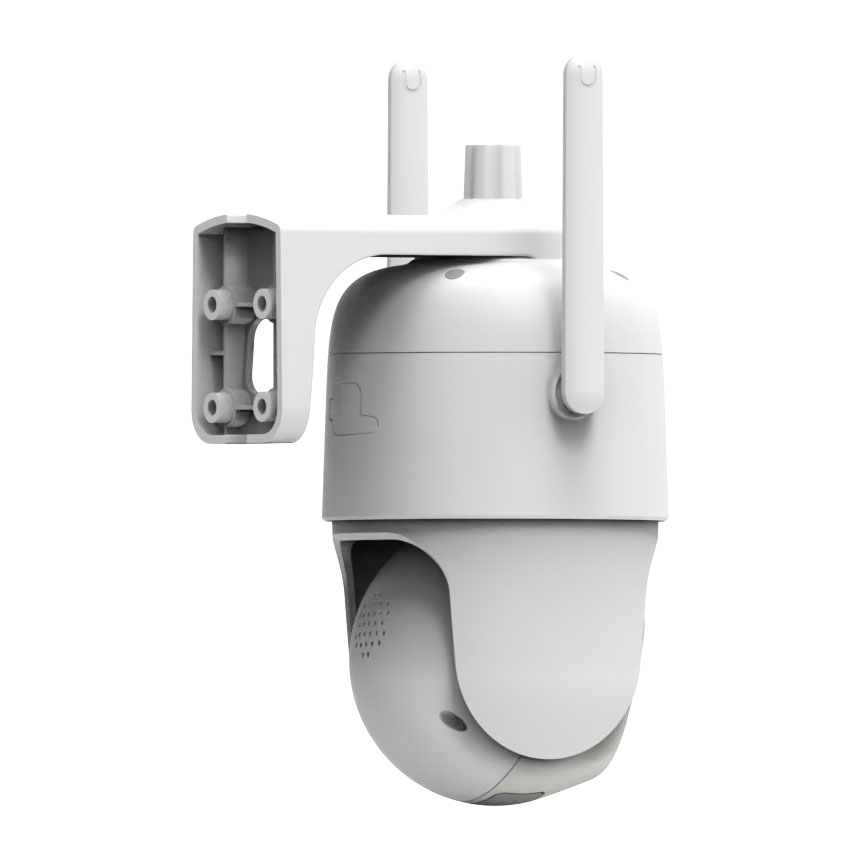

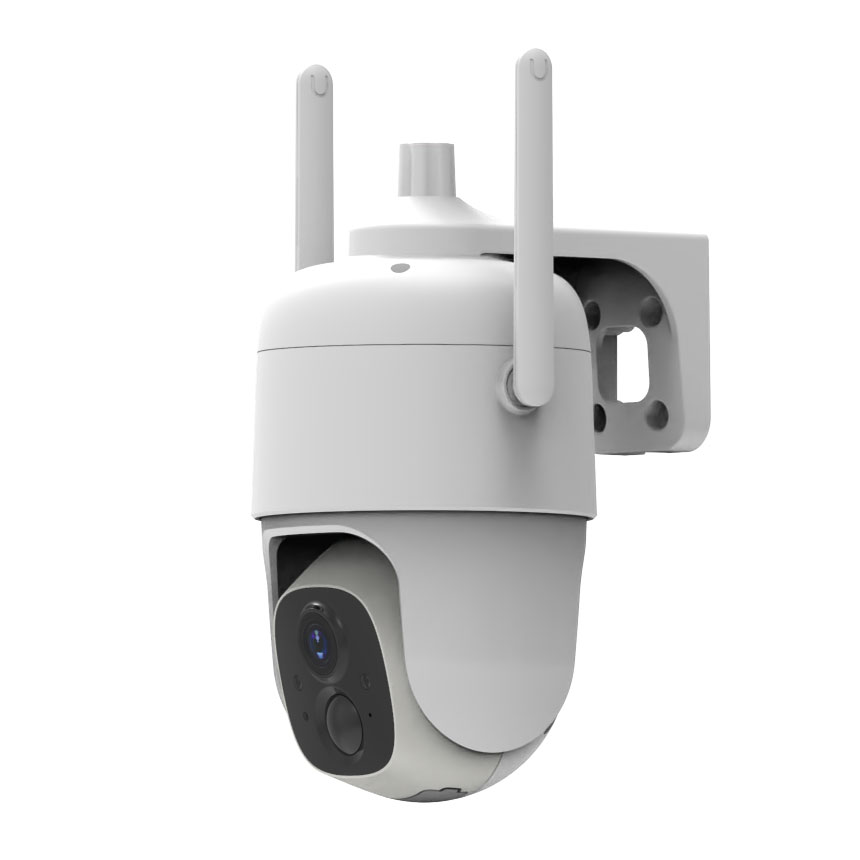

Smart Pan & Tilt Camera - VP01

360° View for Further Peace of Mind

  • 360° full view, further peace of mind.

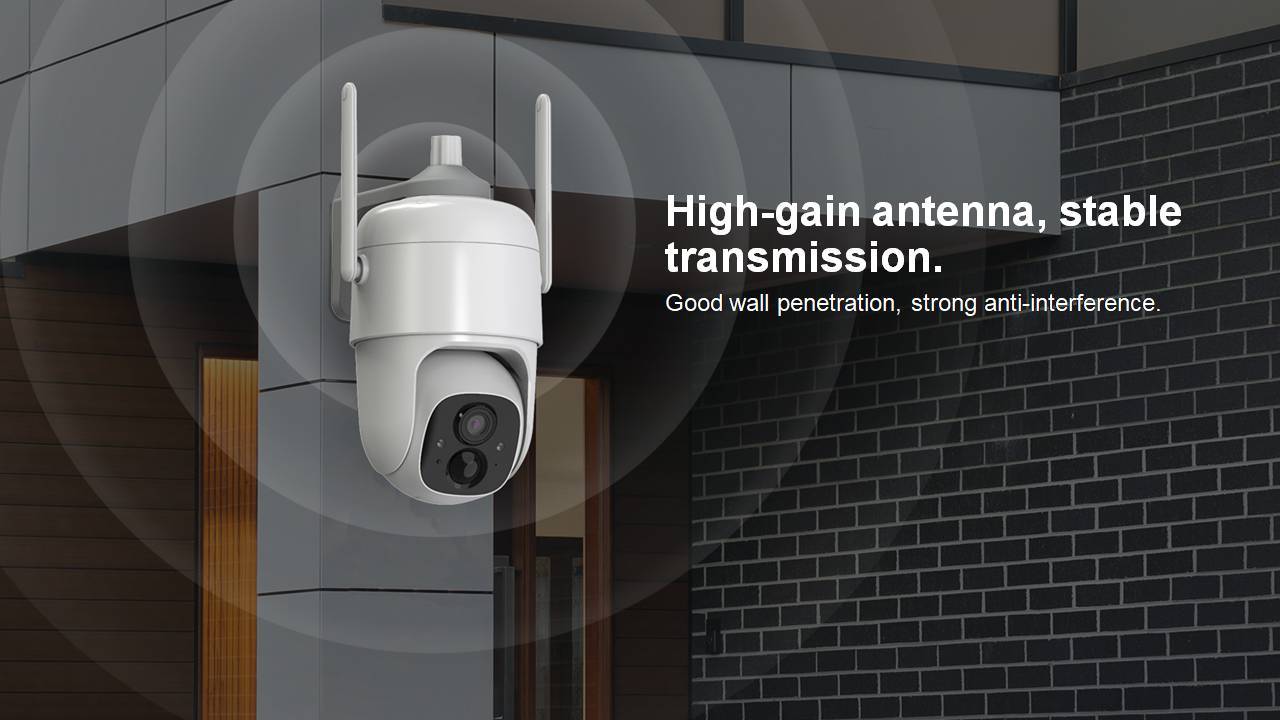

  • High-gain antenna, stable transmission.

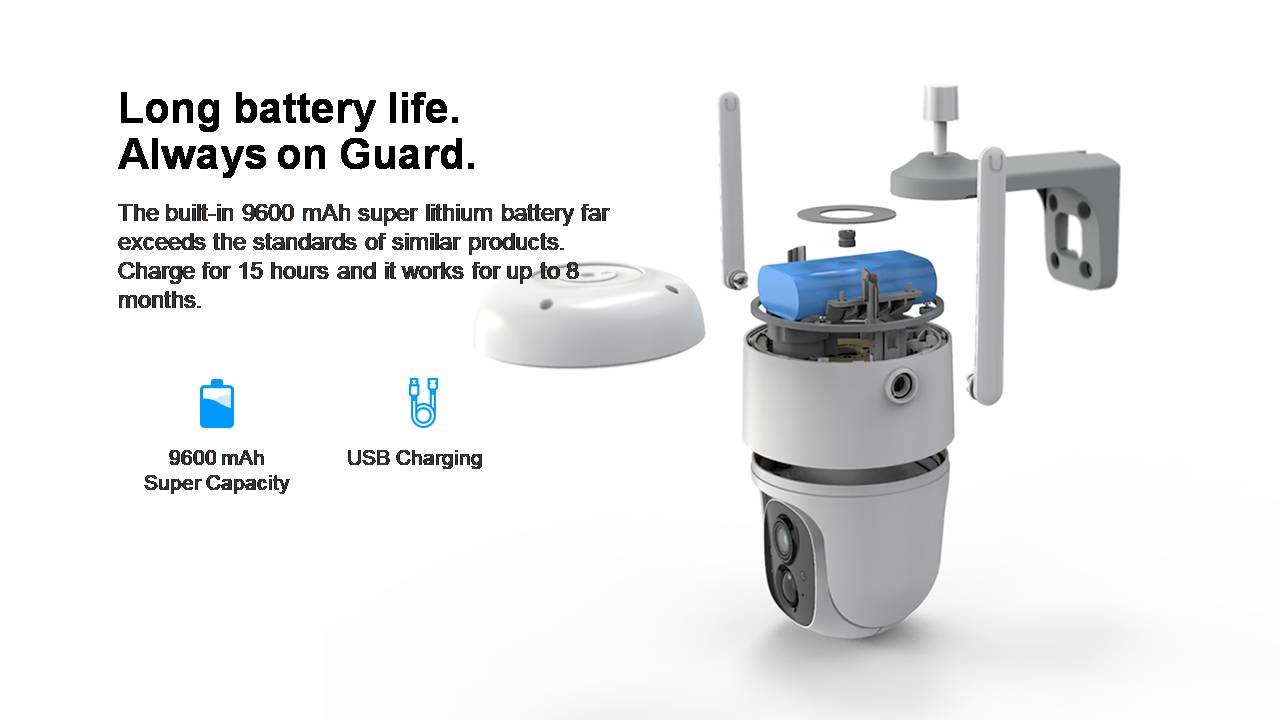

  • Long battery life, Always on Guard.

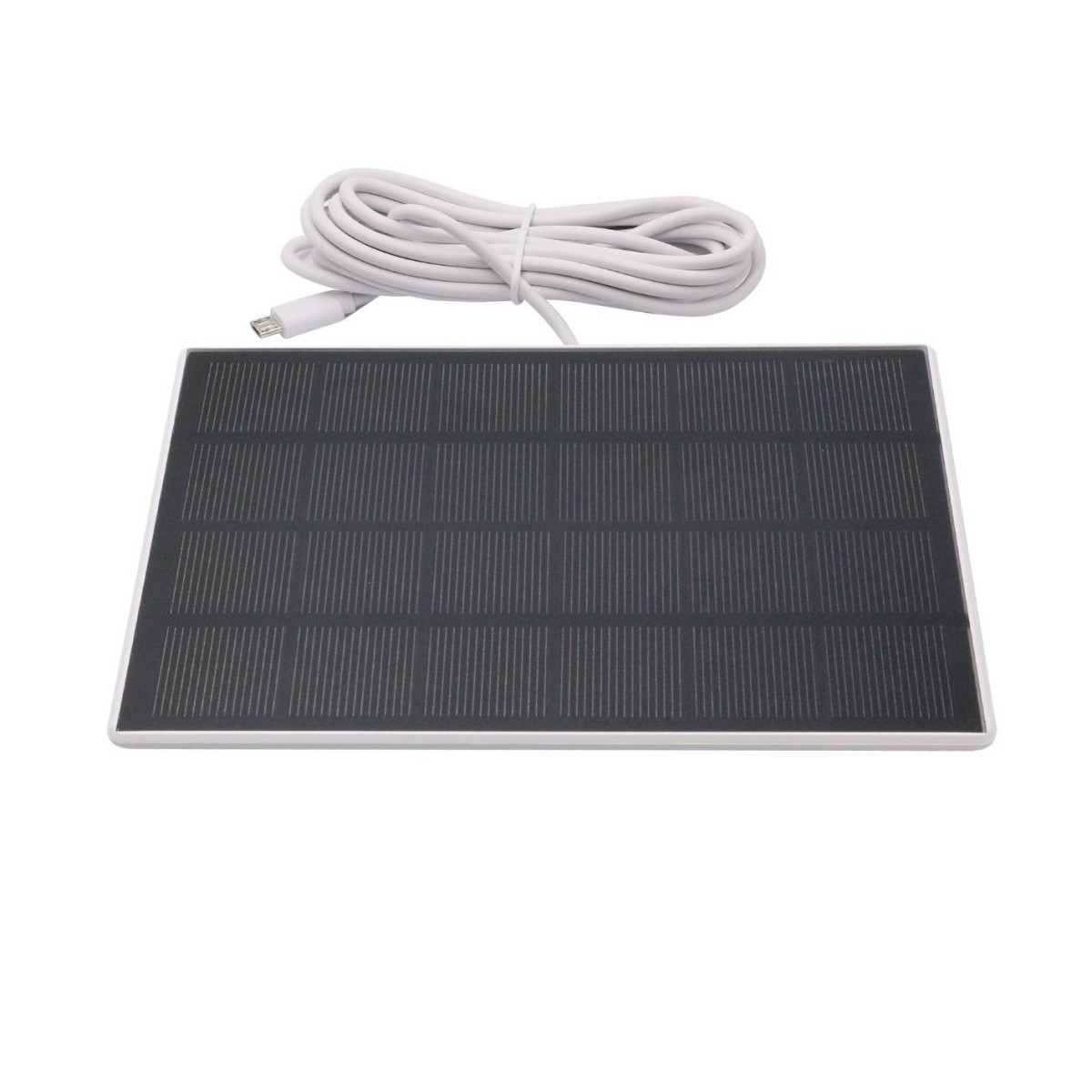

  • Solar powered, uninterrupted security.
  • 1080P image quality, Restore the scene.
  • Dual Light Source with Color Night Vision.
  • IP65 Waterproof and Dustproof.
  • App Control.

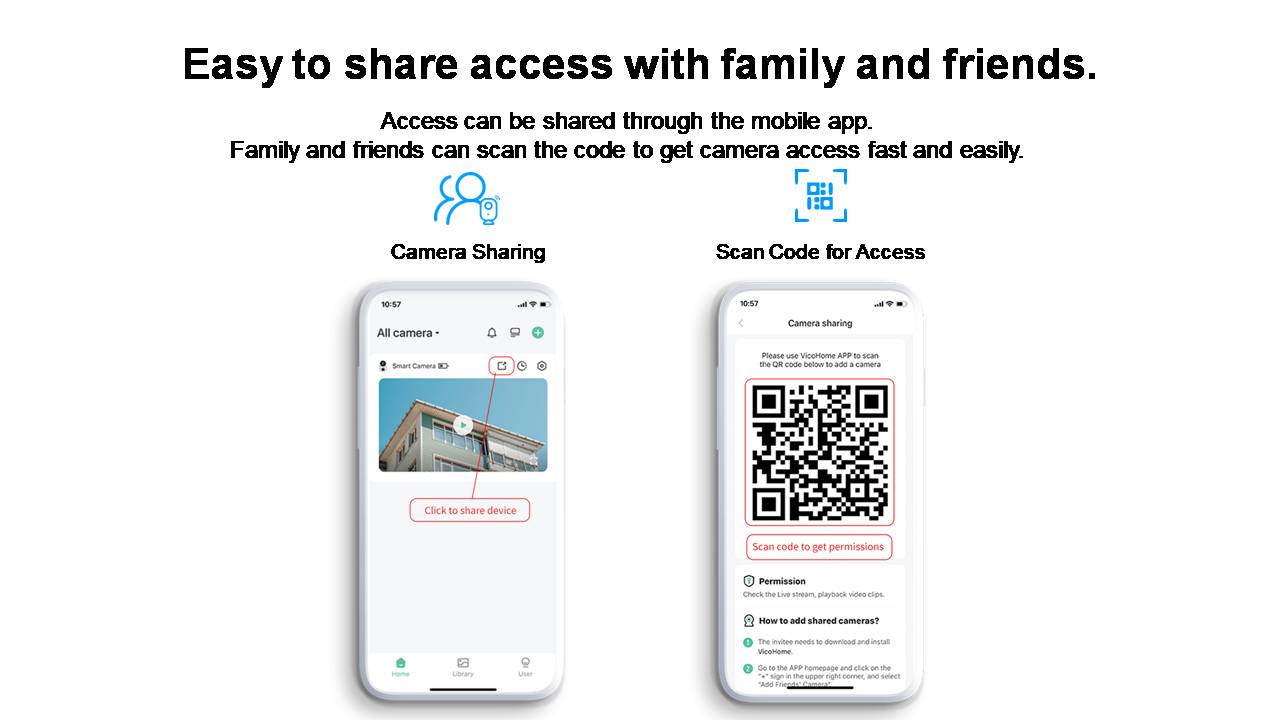

  • QR code intelligent connection and network allocation supported

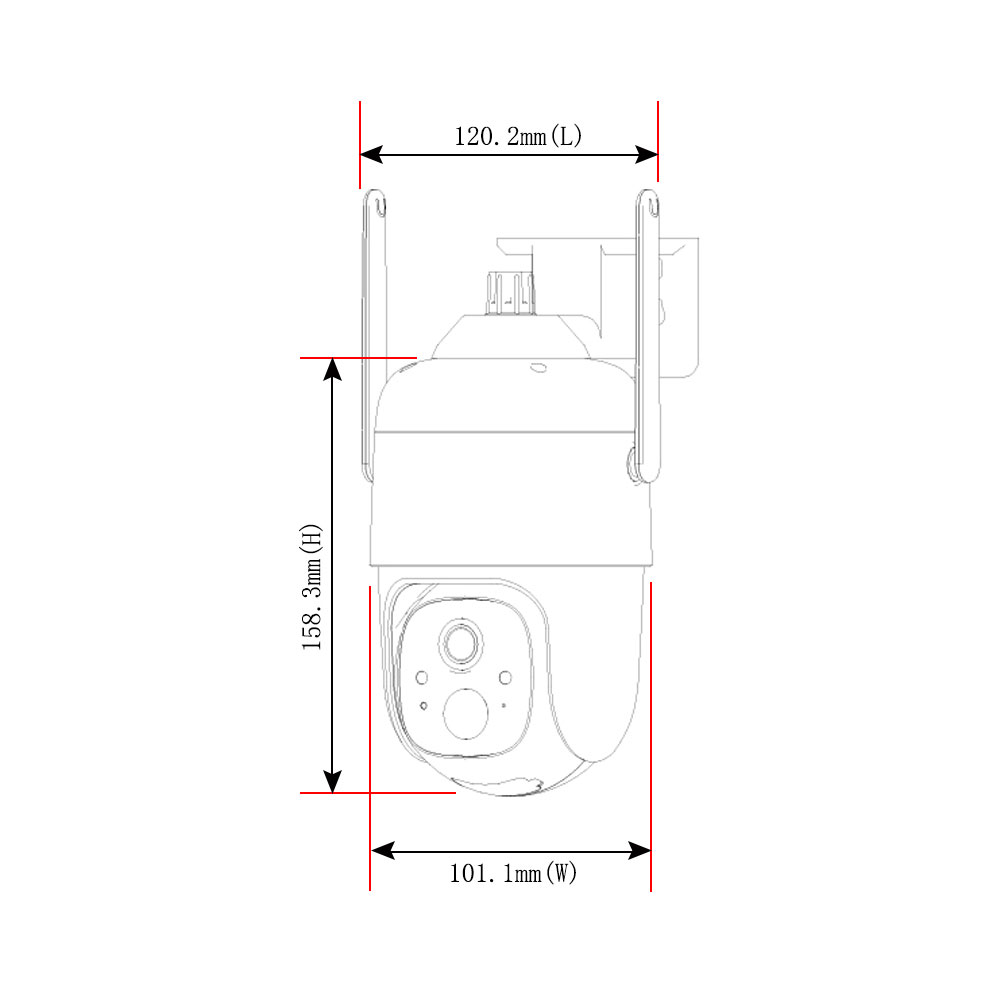

  • Size: 120.2 mm × 101.1 mm × 158.3 mm
PDF Download Video Showing

Close
Specs
Camera Sensor 1/2.9" CMOS
Focal Length 3.2 mm
Aperture F2.2
Optical Field of View 128° diagonal, 96° horizontal, 56° vertical
Minimum Illumination 0.01 lux
Audio Input Built-in microphone
Output Built-in speaker
Two-way Audio Full duplex
Audio Compressing AAC
Video Video Compressing H.264, H.265
Lighting Frequency 50 Hz, 60 Hz
Frame Rate 15 fps
Maximum Resolution 1920 x 1080
Light Source For Night Vision White light or infrared LED switchable
Network Wireless Standard 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)
Protocols Supported TCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address Type Dynamic IP address
Recording Recording Method Alarm triggered recording, and manual recording
Video Storage Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory

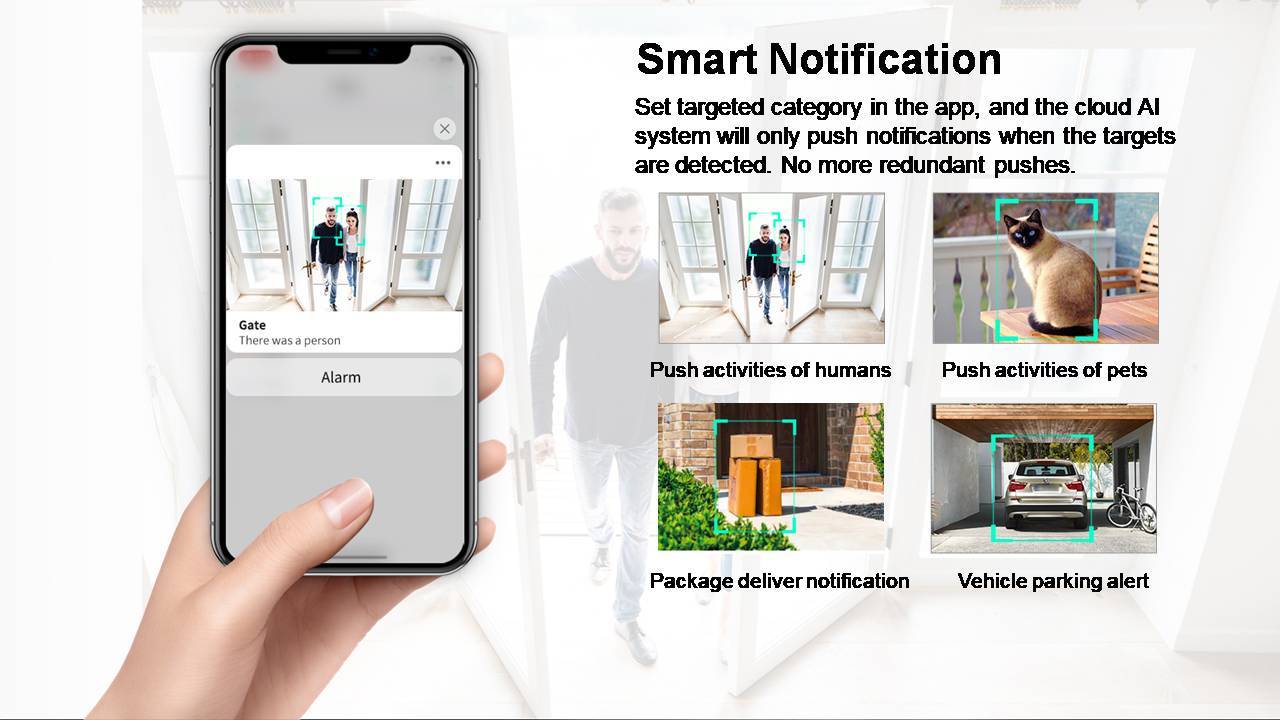

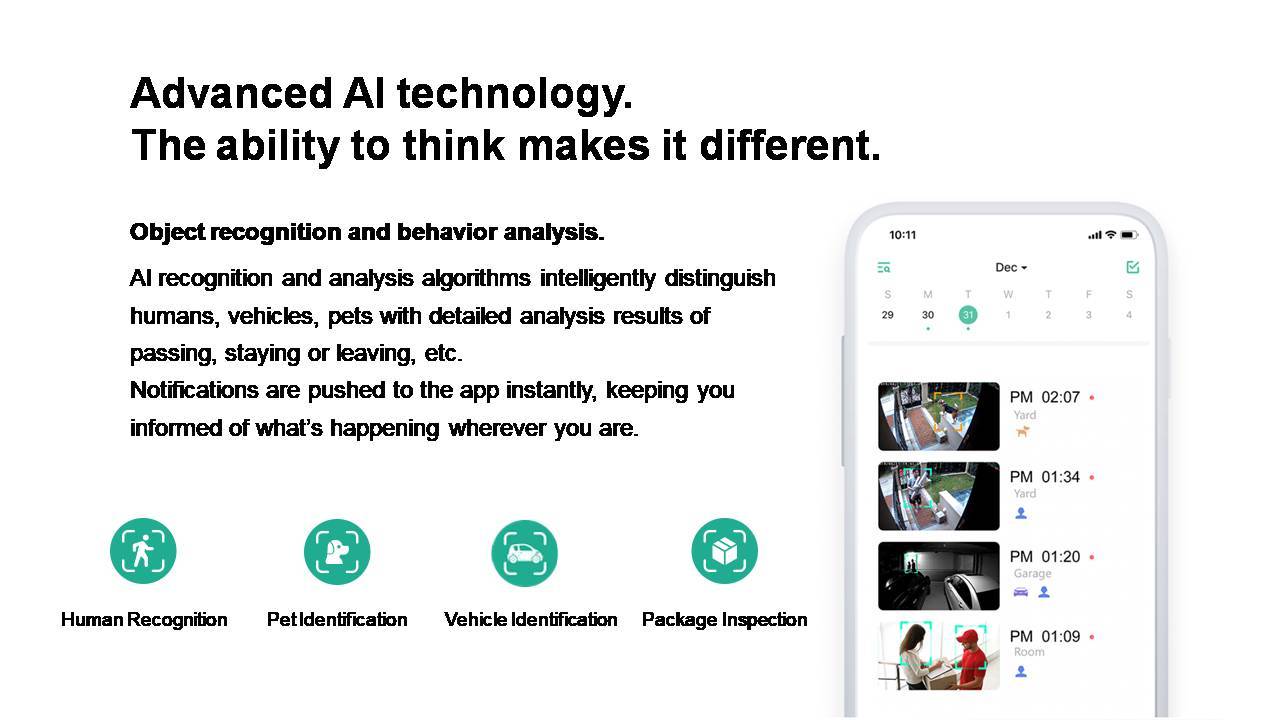

Function AI Function Human detection, vehicle detection, pet detection, package detection, activitiy zone
Wake-up Method PIR body induction wake-up and remote wake-up
Alarm Notification Alarm push by mobile app, white LED flashing and alarm sound warning
Rotation Angle 355° pan, 90° tilt
Indicator RGB tri-color LED
Battery Capacity 9000 mAh
Removability Unremovable
Working Time 8 months (recording 20 pieces of 10-second video per day; pan & tilt unused)
Standby Time 2 years
Charging Voltage 5 V ±5%
Charing Current 1.5 A
Charging Time 15 hours
Protection Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature
Power Consumption Standby 1.68 mW
Daytime Working 0.88 W
Nighttime Working 2.23 W
Interface Power Micro USB
Storage Micro SD card
Key Power key and reset key

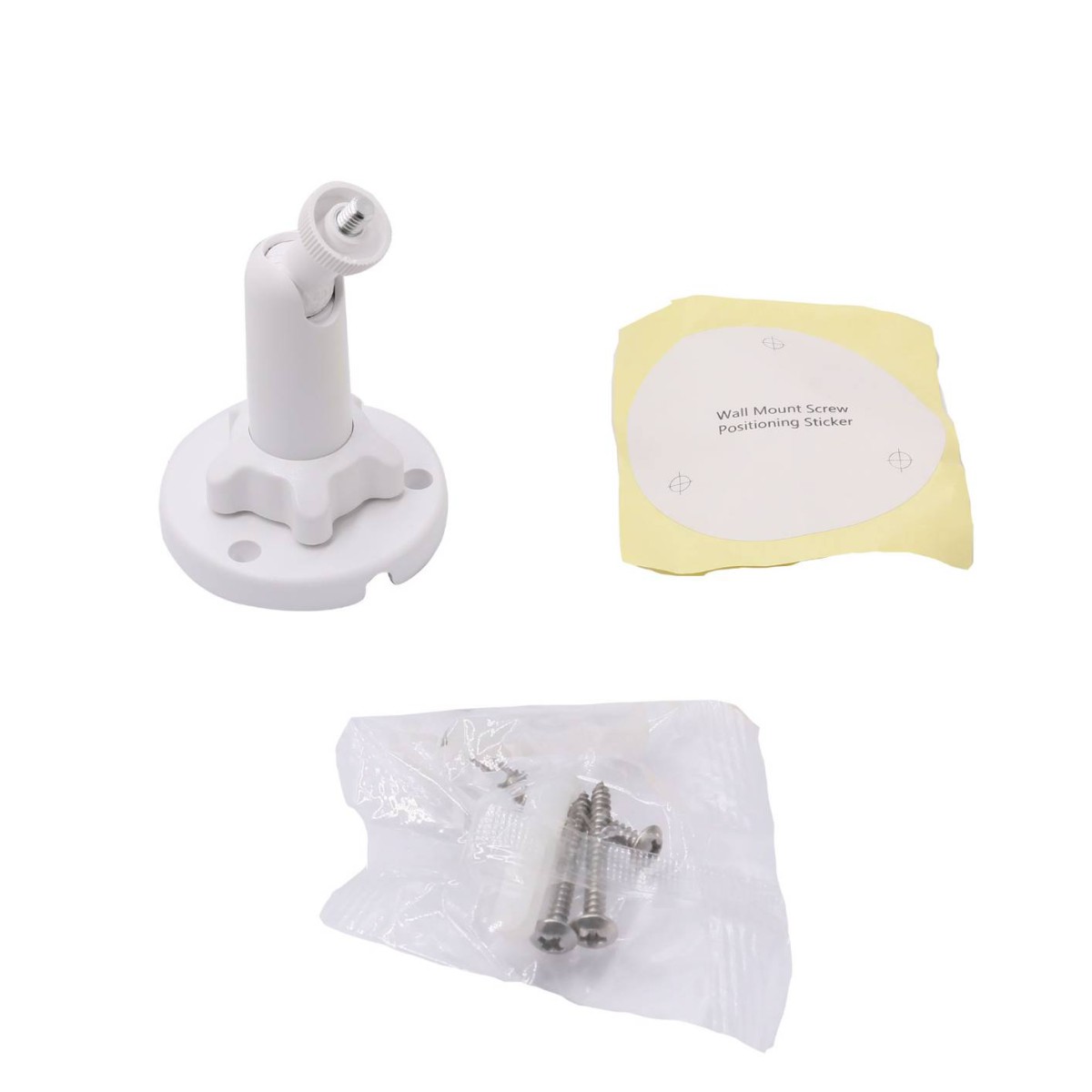

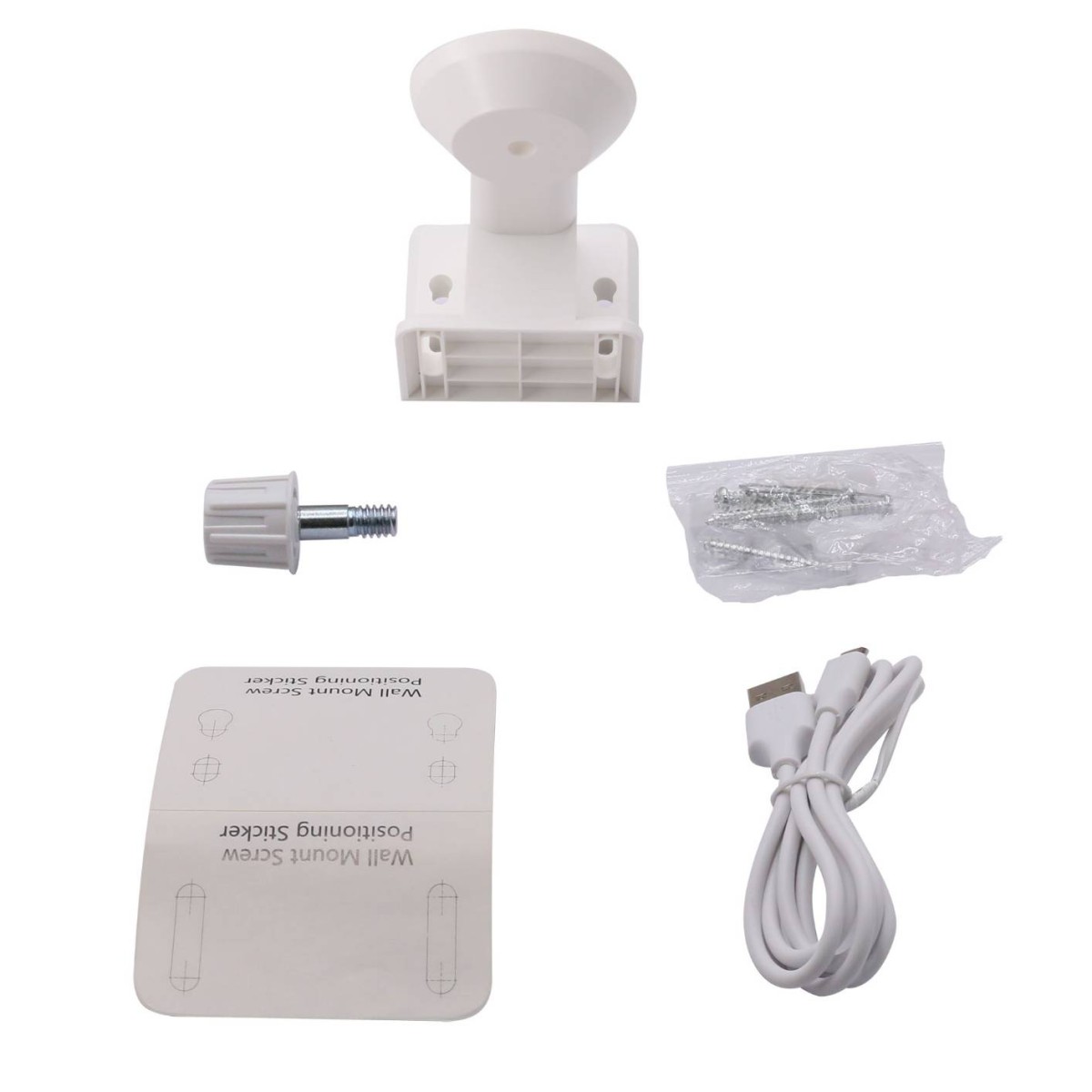

Installation Installation Method Wall mount, ceiling mount, desktop
Bracket Type 1/4' universal screw hole
Environment Dustproof and Waterproof IP65
Operating Temperature -10 ℃ ~ 45 ℃
Storage Temperature -20 ℃ ~ 60 ℃
Prodoct Dimension Dimension 120.2 mm × 101.1 mm × 158.3 mm (without bracket)
Bare Weight 600 g
Finished Weight 700 g
Material ABS + PC
Color White
Certification Certification CE, FCC, RoHS, WEEE, MSDS, UN38.3
