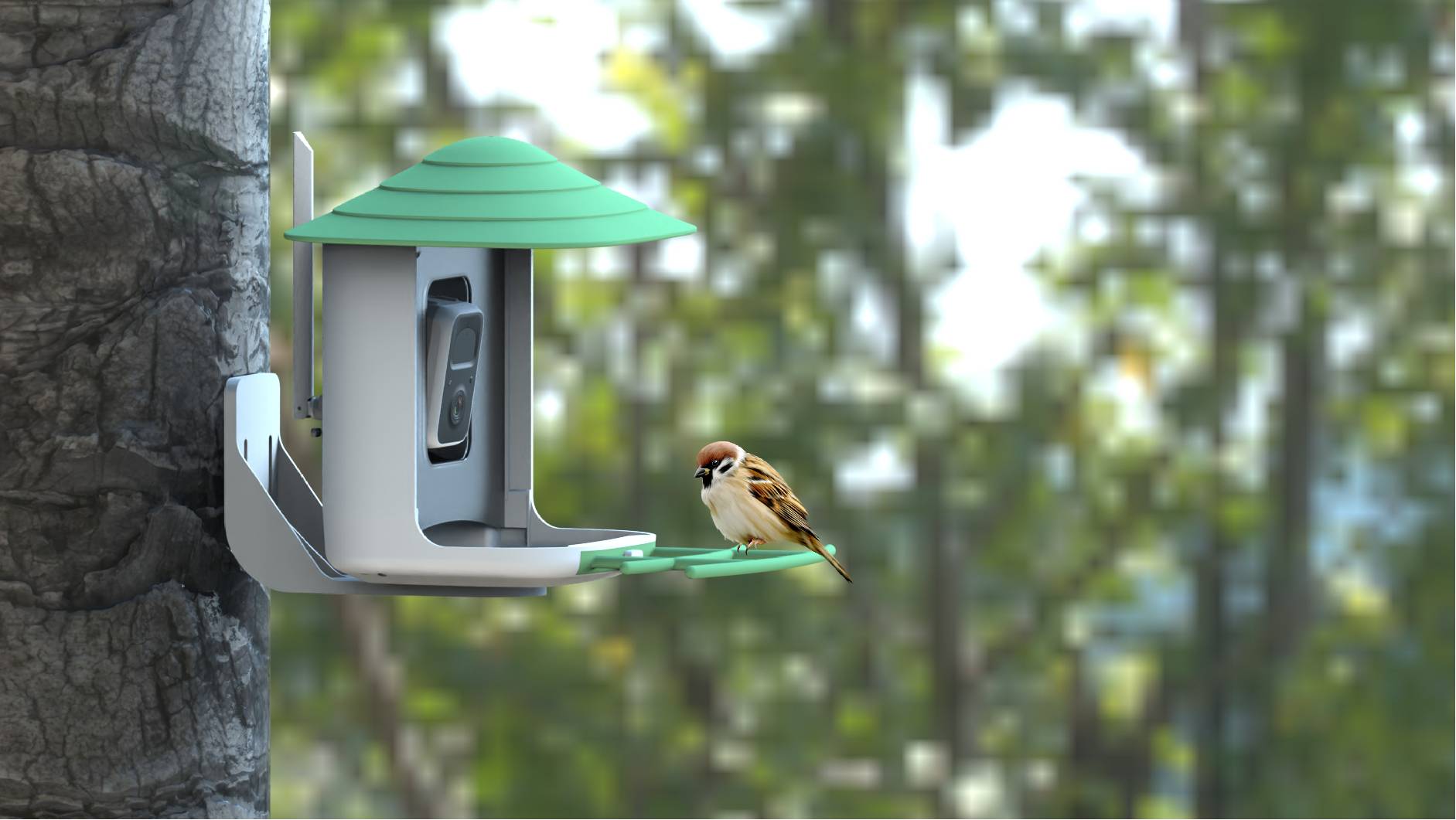

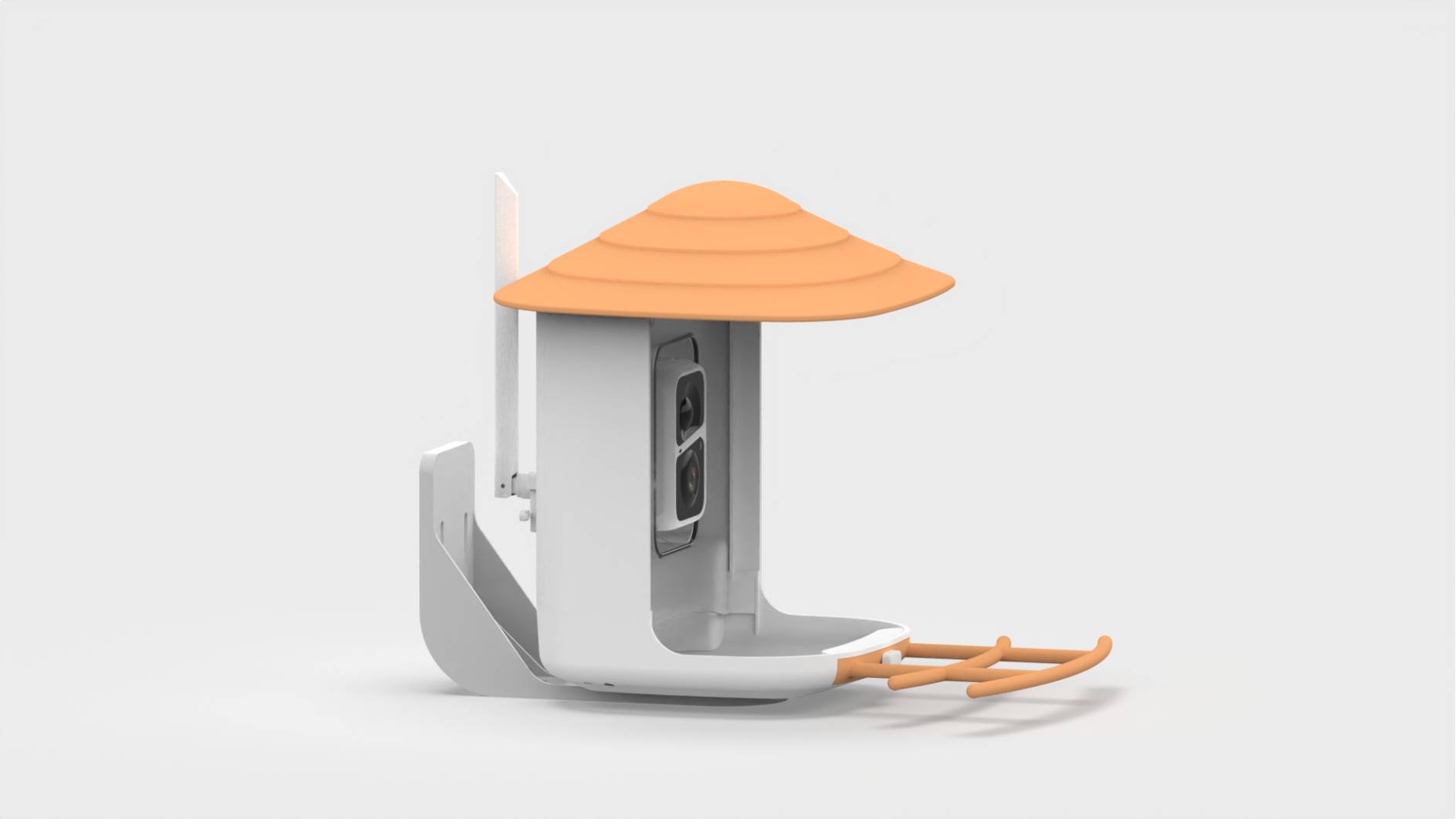

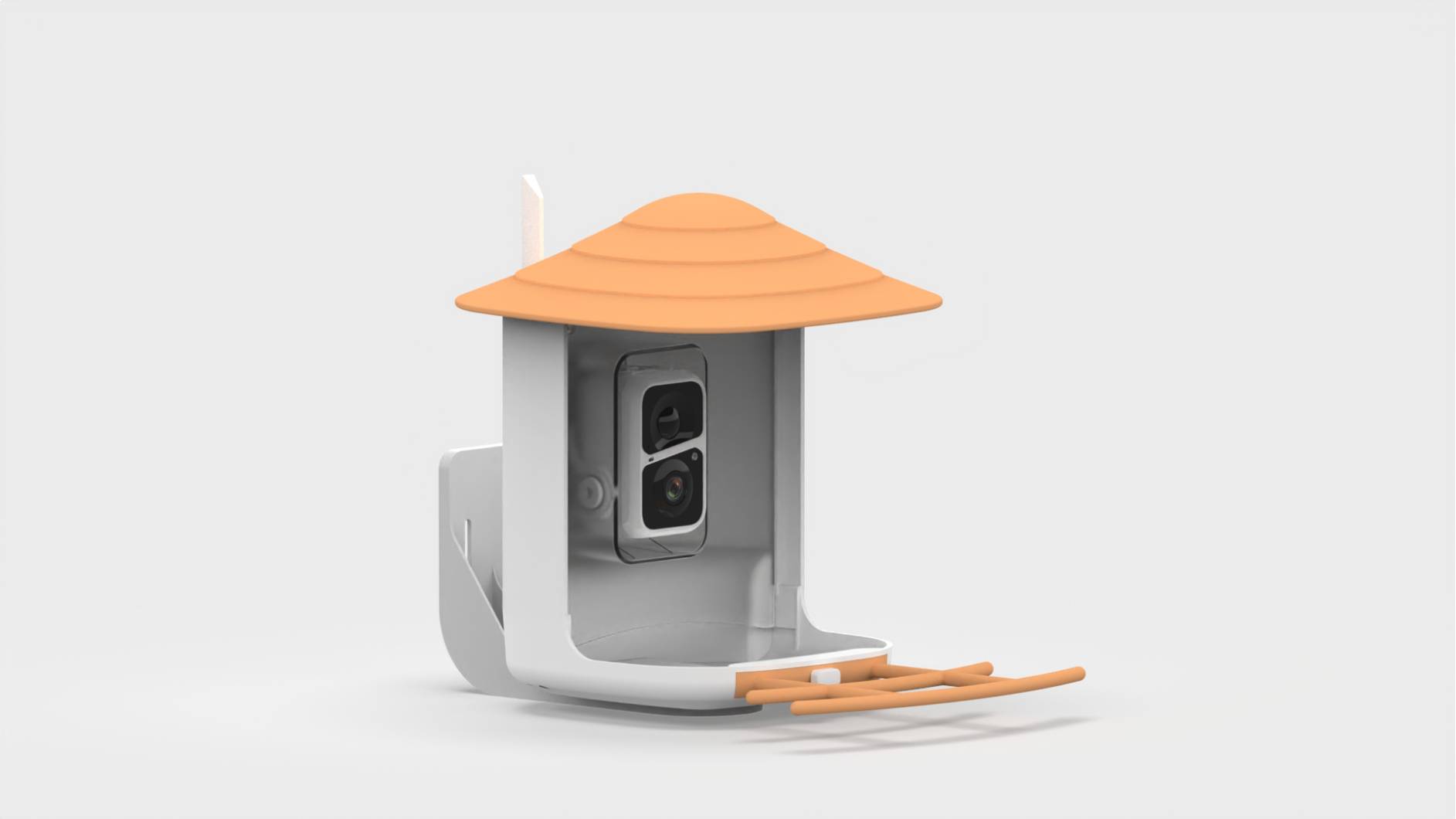

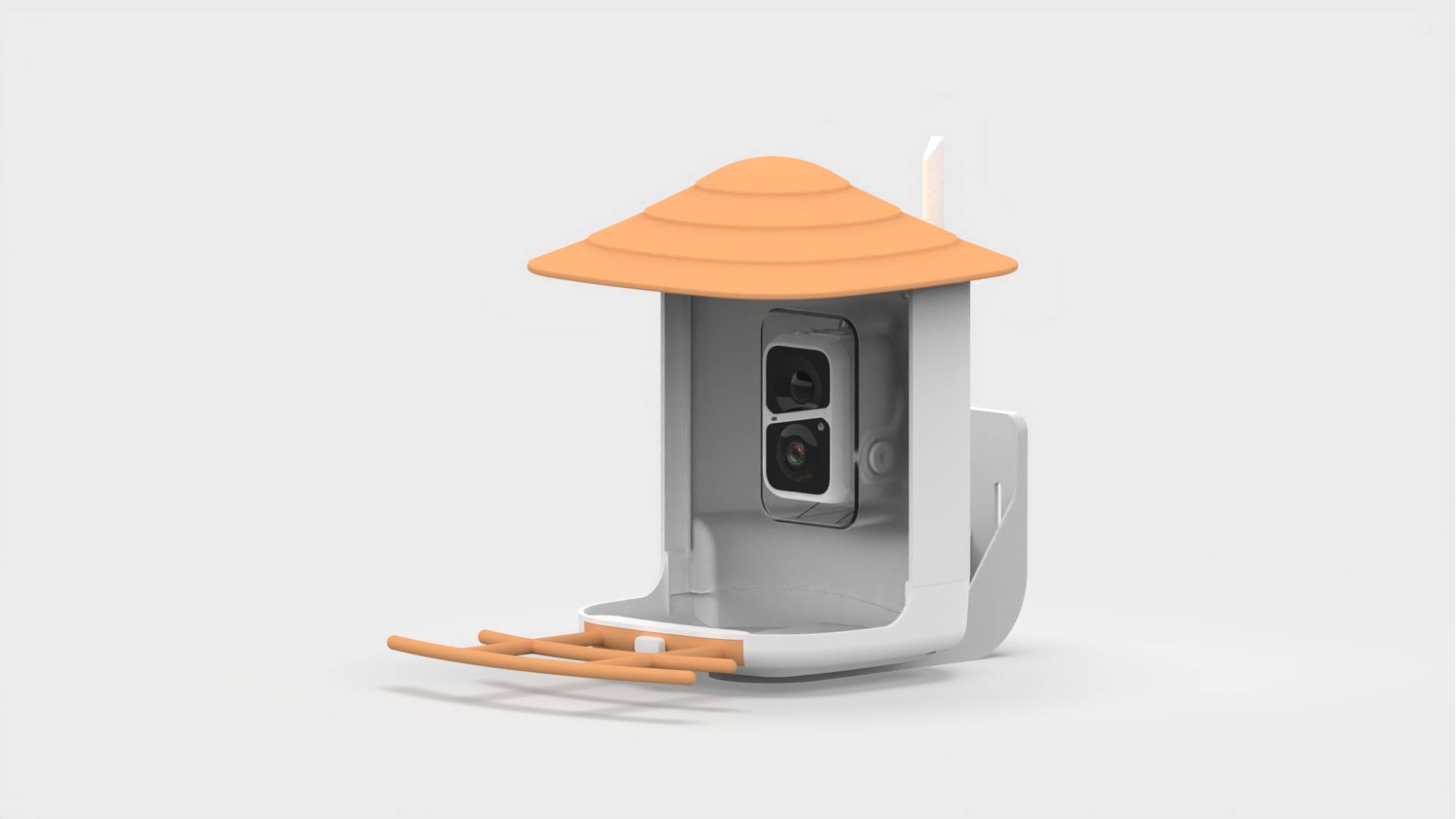

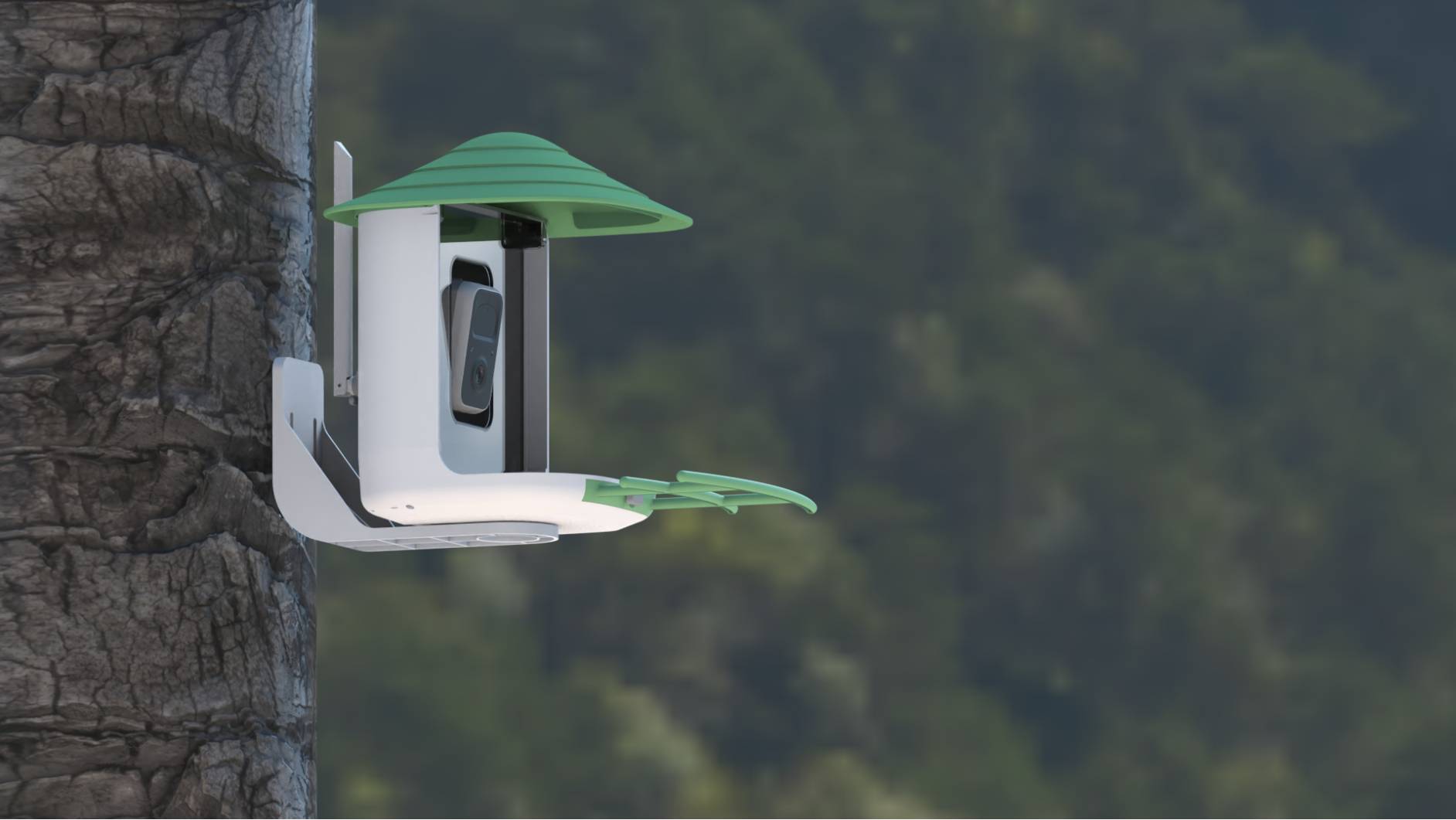

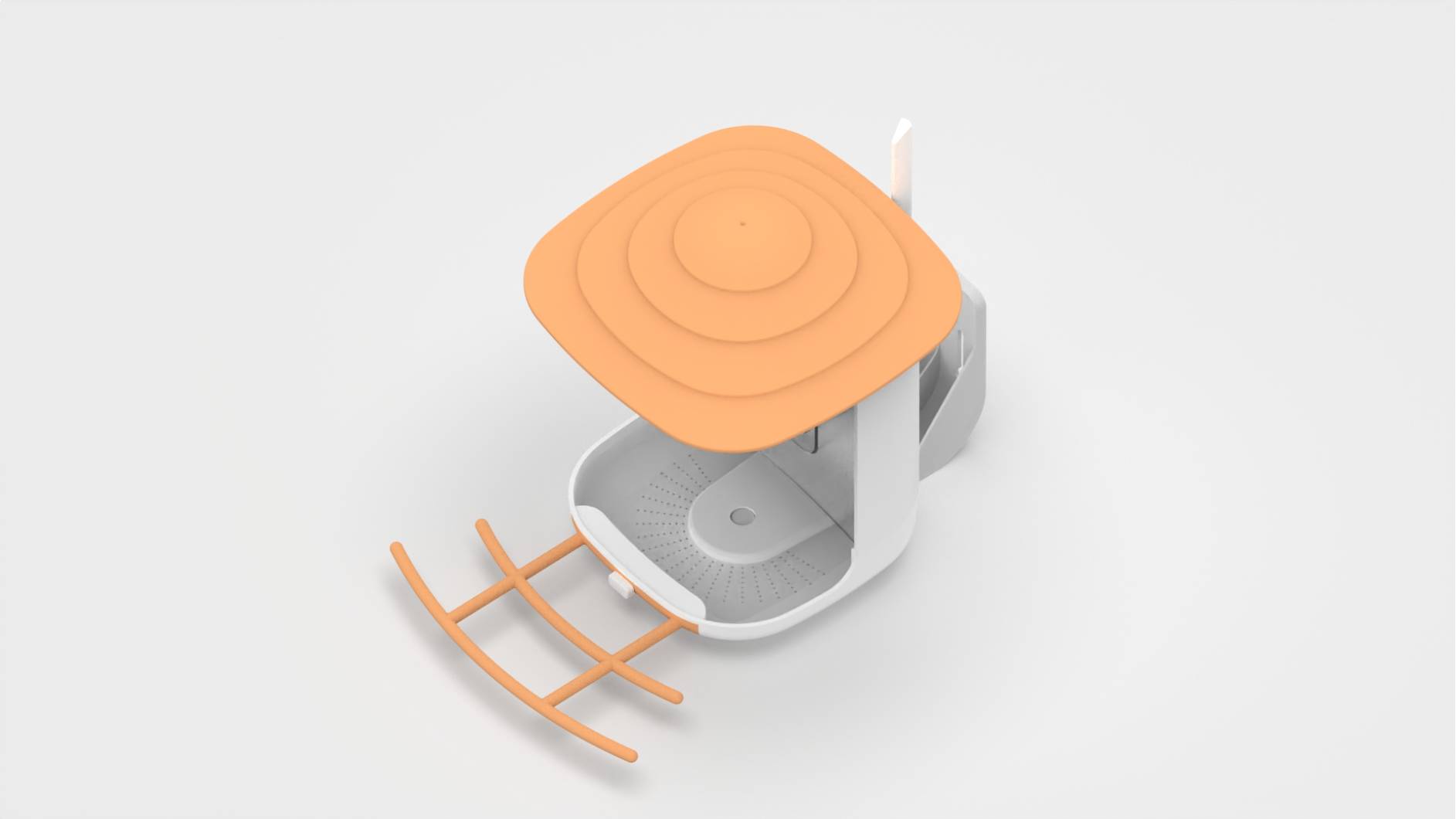

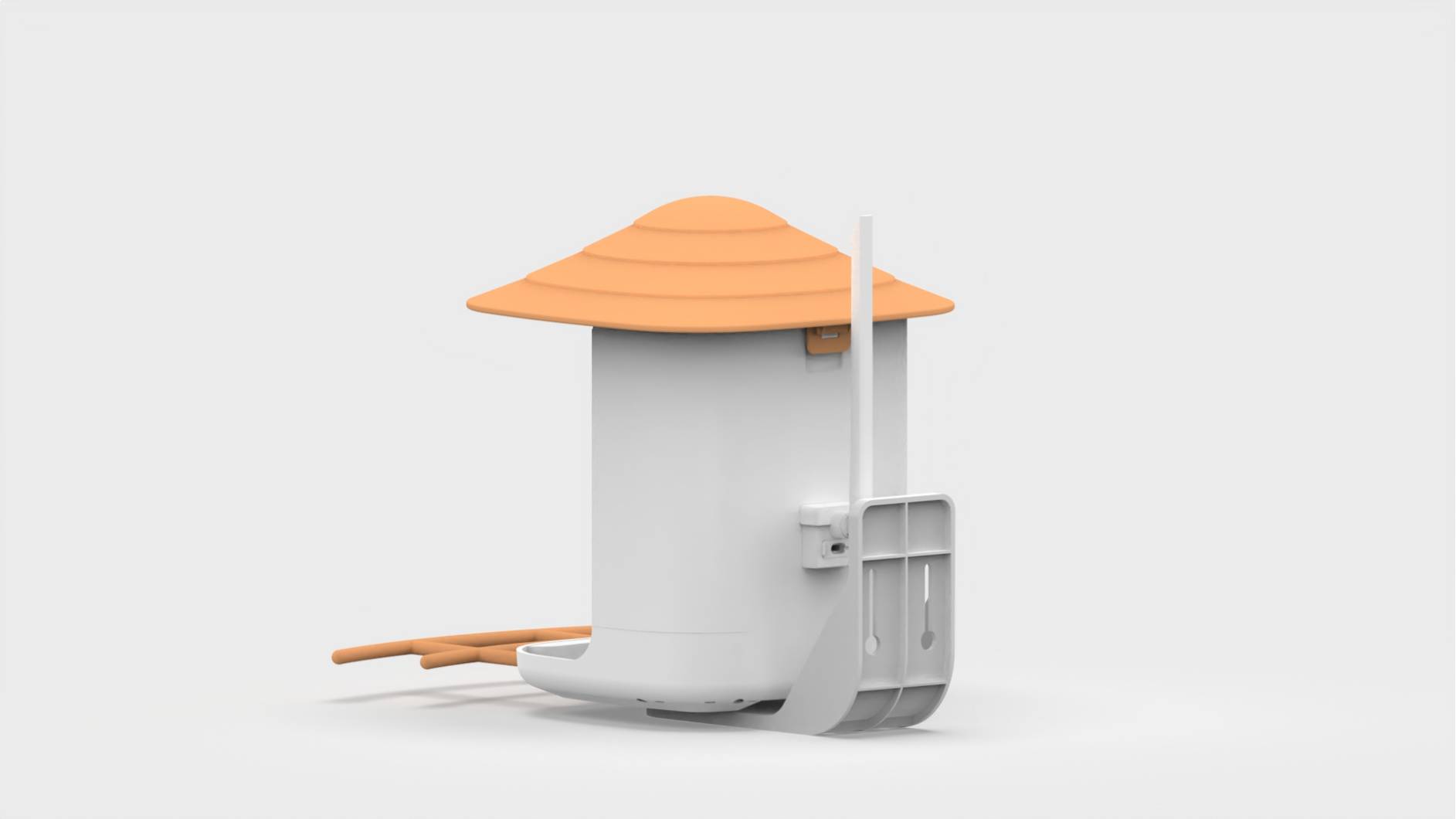

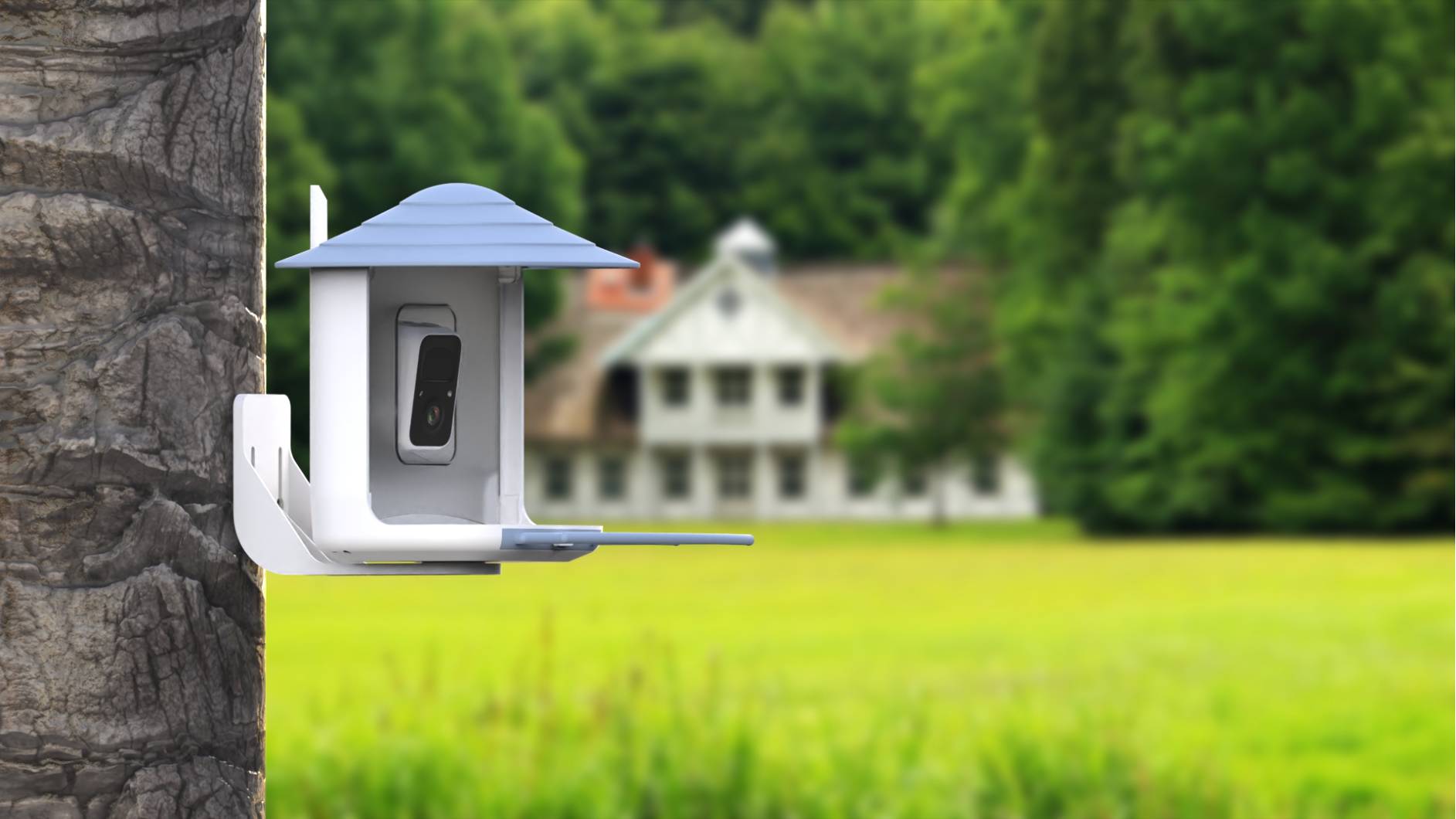

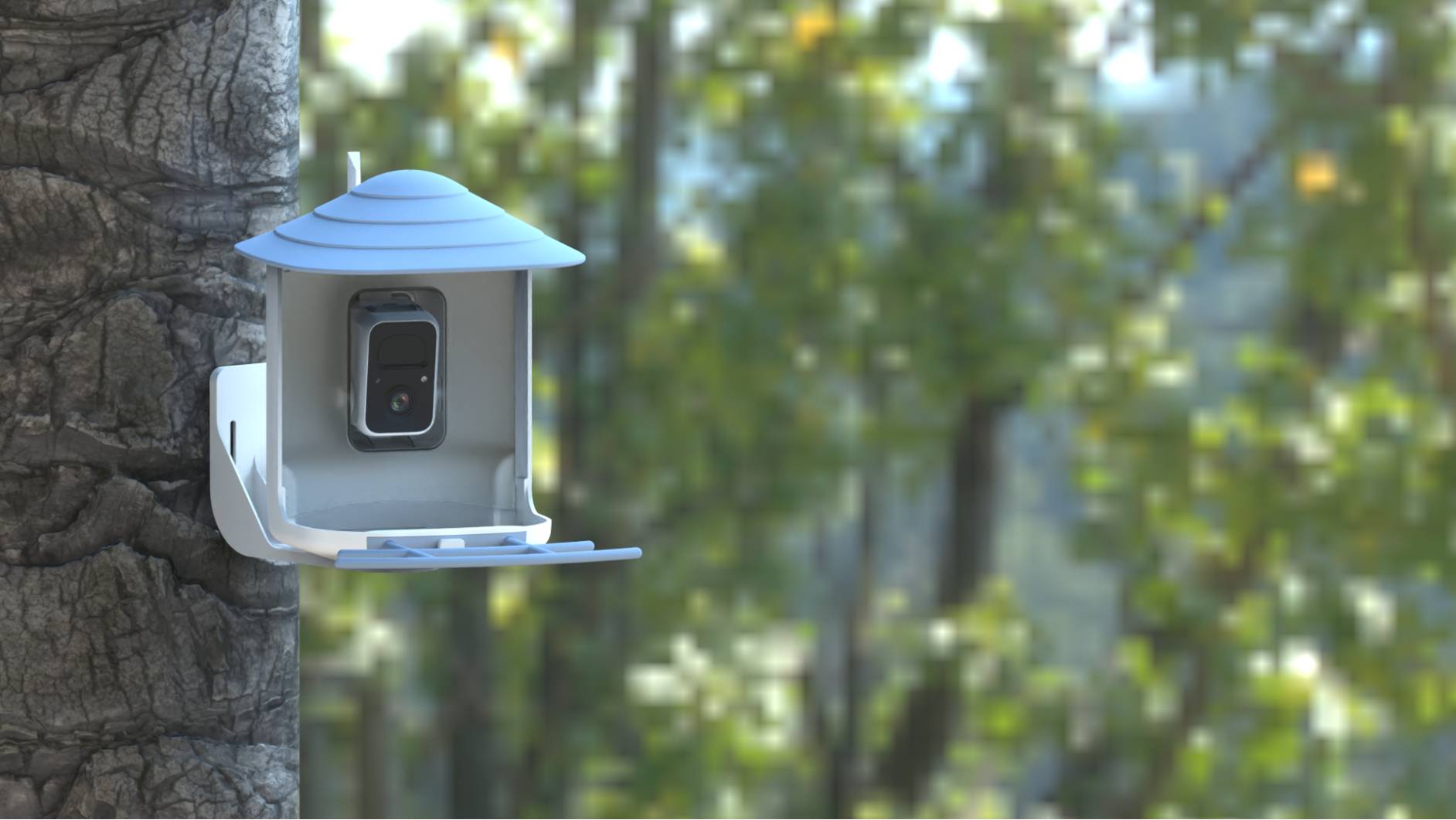

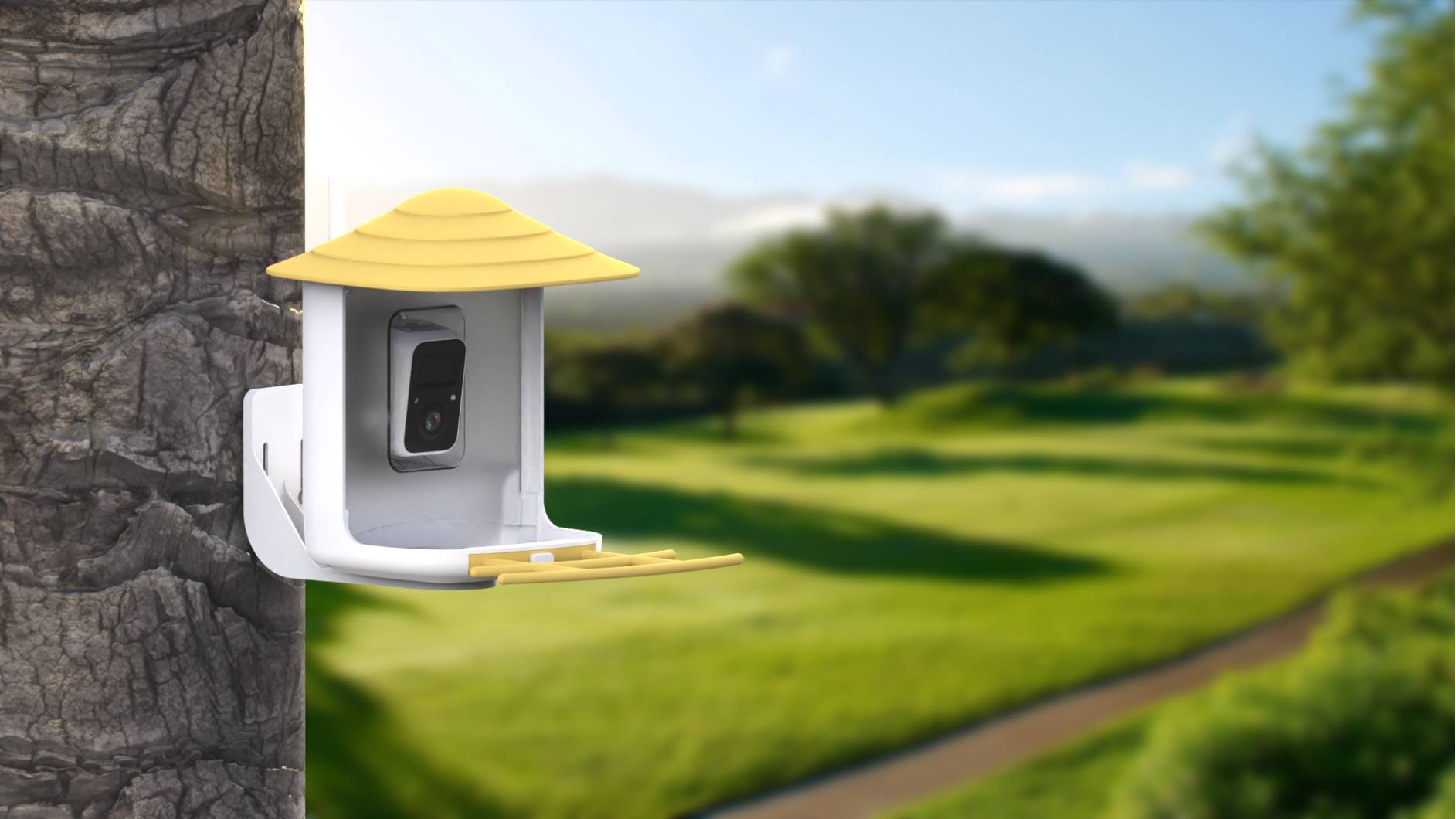

| VN-DB09 Item | Specifications | |
| Bird Feeder | ||
| Body | ABS+PC With Anti-oxidation, anti-ultraviolet and fireproof materials | |
| Birdseed Reservoir |
Front:Transparent PC, Back: ABS+PC With Anti-oxidation, anti-ultraviolet and fireproof materials
AI Bird identify, Support 10000+ bird species identification. Up to 1.8Lbs Large capacity container.
|
|
| Bracket | ABS+PC With Anti-oxidation, anti-ultraviolet and fireproof materials | |
| Weight: | 2300g (With camera,Bracket and accessries) | |
| Size: | 170(L)mm x 190(W)mm x 160mm(H) (Without Bracket) | |
| Camera | ||
| Master Processor | SOC | T31ZL |
| Image Sensor | Sensor | 1/2.9" color CMOS Sensor |
| Lens | M12, f: 2.8mm, F2.0, 2-megapixel | |
| Visual angle | H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 160 degrees | |
| Minimum Illumination | 0.01 Lux | |
| Audio | Input/Output | Two-way voice intercom available (built-in Microphone and speaker) |
| Audio Compressing Method | AAC | |
| Video | Video Compressing Method | H.264/H.265 |
| Lighting Frequency | 50Hz, 60Hz | |
| Image Frame Rate | 15 fps | |
| Maximum Image Resolution | 1920*1080P | |
| Light Source for Night Vision | IRCUT double optical filter automatic switching, and 8 infrared lights (850nm wavelength)Irradiation distance: 7M | |
| Network | Wireless Network | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna |
| Protocols Supported | TCP/IP, UDP/IP, DHCP, RTMP, MUTP | |
| IP Address Supported | Dynamic IP address supported | |
| AI | Intelligent Features | Human contour detection, activity zone,intelligent push, pet snapshot,Package inspection |
| Alarm Notification | Alarm Methods | Alarm push by mobile APP and alarm sound |
| Wake-up | Wake-up Method | PIR body induction wake-up, and remote positive wake-up |
| Video Recording | Recording Method | Alarm triggered recording, and manual recording |
| Video Storage | Cloud storage, local Micro SD card, and mobile phone memory | |
| Indicator Lamps | LED Indicator | RGB tri-color lamp indicating the status of power/network signal/functionality |
| Battery | Capacity | 5200mAh/6700mAh（Optional ） |
| Removability | Unremovable | |
| Battery Life | 6 months (provided that 20 10s videos are recorded per day) | |
| Standby Time | 1 year | |
| Charging Voltage | DV 5V+-5%/1.5A | |
| Charge Time | Within 10 hours | |
| Protection Method | IP65 is dustproof and waterproof; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures | |
| Power Consumption | Standby Power Consumption | 1.68mW（4V 0.42mA） |
| Power Consumption of Daytime Operation | 0.88W（4V 220mA） | |
| Power Consumption of Operation at Night | 2.20W（4V 550mA） | |
| Interfaces | Power Supply | 1 Micro USB interface |
| SD Card | 1 Micro SD card (up to 128GB supported) | |
| Keys | 1 reboot key and 1 on/off key | |
| Installation Method | Installation Method | Bottom 1/4 universal screw hole |
| Environment | Dustproof and waterproof | IP65 |
| Operating Environment | -10° ~ 45°C /10% ~ 80% (no condensation) | |
| Storage Environment | -20°C ~ 60° /0% ~ 90% (no condensation) | |
| Specifications | Size (LxWxH) | 290(L)mm x 250(W)mm x 195mm(H)(without bracket) |
| Material + Process | ABS+PC | |
| Color | White | |
| Certifications | Certificate | CE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368, BattG |
